Description:

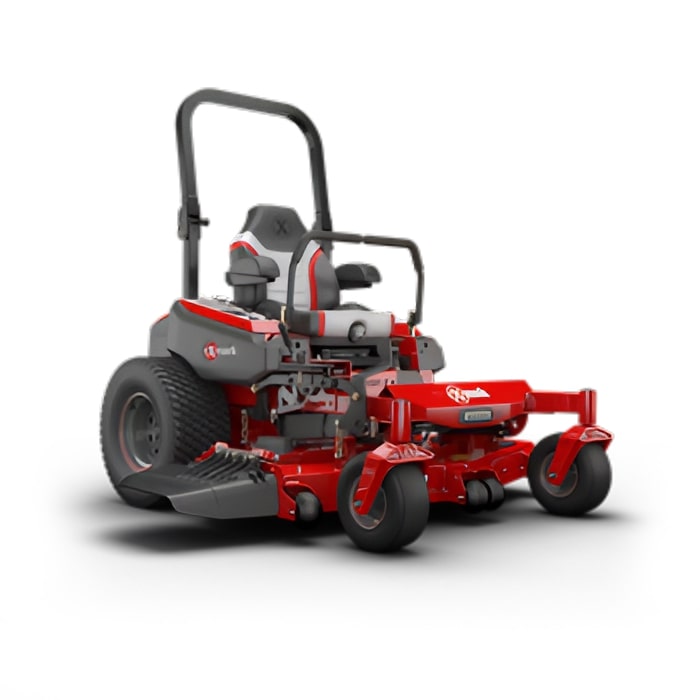

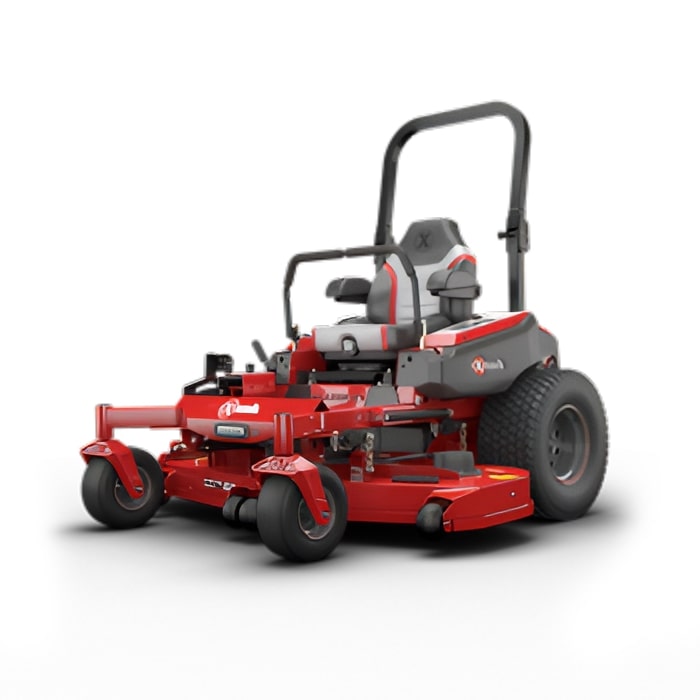

Introducing the Lazer Z V-Series, the revolutionary electric zero-turn mower that combines our industry-leading Lazer Z zero-turn mower with the cutting-edge HyperCell power system. This new model gives landscape professionals a significant advantage in bidding for contracts requiring sound ordinances or zero engine exhaust.

The Lazer Z V-Series delivers the exceptional cut quality, productivity, and commercial durability you expect from Exmark, all while operating quietly and with minimal maintenance. Thanks to the HyperCell power system, you can enjoy up to 7+ hours of runtime on a single charge, enabling you to tackle an entire day's work without needing to recharge. Our patent-pending management software ensures precise maneuverability and consistent control, while Horizon360 Connect remote software provides full app-based connectivity for managing settings, tracking location, and accessing data from your mower.

For those seeking the premier commercial electric zero-turn mower on the market, the Lazer Z V-Series stands out. It is available with an Adapt-equipped 60-inch Electric Series 4 cutting deck, offering the power and productivity needed to stay ahead of the competition.

Mower Deck Widths: 60"

Specification:

• UPC: 193308225487
• Onboard Intelligence: Proprietary control system
• Steering Control: Hydraulically dampened twin levers, adjustable fore and aft. Adjustable to 2 height positions.
• Caster Forks: Cast steel fork
• Front Caster Tires: 13 x 6.5-6, smooth-tread, semi-pneumatic.
• Drive Tires: 24x12-12, 4 ply Grass Master®
• Parking Brake: Spring applied/electrically released dry parking brake.
• Tractor Frame: Unibody, welded, heavy-duty 2" x 3" tubular steel.
• Blade Spindles: No maintenance, electric deck motor; 7.75"-diameter motor housing with 25mm (.98) diameter spindle shaft.
• Electrical: 60-volt 23.4kWh HyperCell battery system.
• Standard Features: USB plug-in, hour meter, and cup holder
• Seat: Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System providing operator isolation in all three planes of motion, with fore-aft slide and seat flip-up.
• Engine Brand: N/A
• Engine Model: N/A
• Engine Displacement: N/A
• Engine Series: N/A
• Fuel System: N/A
• Speed: Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse.
• Drive: Electric drive
• Engine Spec: N/A
• Engine Speed: N/A
• Air Filter: N/A
• Fuel Capacity: N/A
• Drive Description: Two Exmark exclusive Dana planetary gearset electric motors.
• Fuel Type: Battery
• PTO Engagement: N/A
• Drive Wheel Release: Allows unit movement without electric power.
• Fuel Indicator: Battery charger level indicator
• Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
• Carb Compliant: N/A
• Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
• ROPS: 2-post foldable ROPS standard with seat belt and latch.
• Deck Style: Floating Deck
• Deck Style Description: Full-floating Electric Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Width / Cutting Deck: 60"
• Deck Construction: 7-gauge high strength alloy top that is formed and seam welded, with 7-gauge high strength alloy side skirt.
• Cutting Heights: 1.0" (2.5 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
• Blade Tip Speed: Approximately 17,500 fpm.
• Blades: 3 Blades at 20.50" Length
• Width: 75.4 in. (191.5 cm)
• Height: 71.8 in. (182.4 cm)
• Length: 82.3 in. (209.0 cm)
• Curb Weight: 1414 lbs
