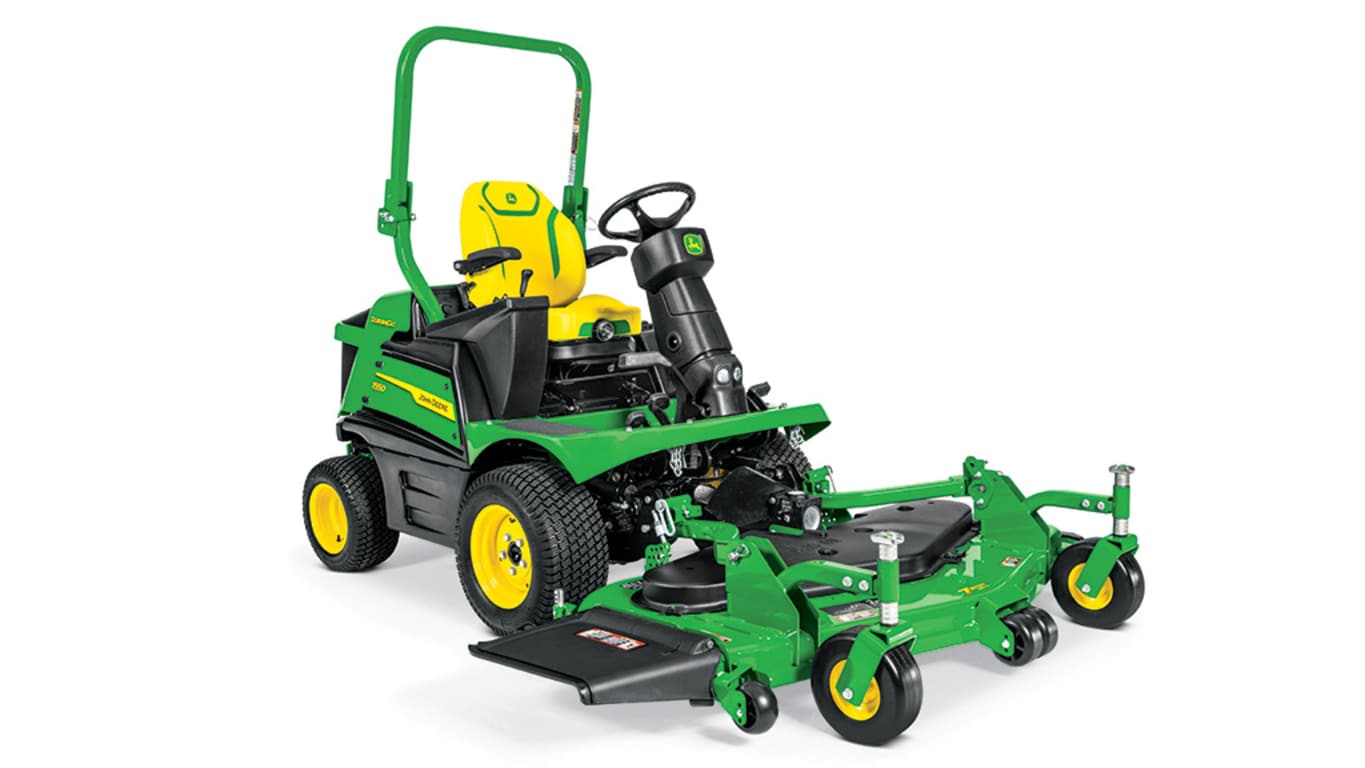

John Deere 1550 TerrainCut™ Front Mower
Vendor : John Deere
Product Type : Front Mower
Sku : 1550
Couldn't load pickup availability
JOHN DEERE 1550 TERRAIN CUT FRONT MOWER
Key Features
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Diesel Engine
- Biodiesel Conversion Kit available
- Compatible with select front blade, snow blower and broom attachments
-
Key Specs
Engine Manufacturer/model 3TNV80F Engine Power Gross PS: 25 hp
18.4 kWFuel tank capacity 16 U.S. gal.
60.6 LMower deck Size 60 or 72 in.
152 or 183 cmBlade tip speed 18,000 fpm
5,486 m/minTransmission Hydrostatic 2WD, optional full time or on demand 4WD Speed range 0-12 mph
0-19.3 km/hDrive wheels 23x10.5-12
Optional: 23x8.5-12Caster wheels Flat free, 11x4-5 Warranty 24 months EngineManufacturer/model 3TNV80F Power Gross
PS: 25 hp
18.4 kW
Rated engine rpm 3,000 rpm Cylinders Three Displacement 77 cu in.
1.26 LMaximum torque At 1,900 rpm: 47.2 lb-ft
64 NmInjection Indirect Fuel type Diesel (optional kit permits B20 compatibility) Fuel tank capacity 16 U.S. gal.
60.6 LCooling Liquid Cooling capacity 7.5 U.S. qt
7.1 LAir cleaner Dual element dry type Air restriction indicator Standard Charging system Automotive type Alternator, amp 75 amp Battery 12 V DrivetrainTransmission Hydrostatic 2WD, optional full time or on demand 4WD Speed and direction control Two-pedal foot Cruise control Optional Hi/Lo range No, single speed transmission Travel speedSpeed range Hi forward 0-12 mph
0-19.3 km/hLo forward Hi reverse 0-5 mph
0-8 km/hLo reverse 4-wheel drive Differential lock Final drives PTO PTO clutch PTO drive output HydraulicsType Open center Pump capacity 5.1 U.S. gpm
19.3 L/minSpool valve Front lift, standard Lift cylinders Two SteeringType Hydraulic cylinder Turns lock-to-lock 2 maximum, 1.5 minimum BrakesType Internal wet disk Individual turn brakes Standard Master brake Standard, locking Buyer's notesWarranty 24 months TiresDrive wheels 23x10.5-12
Optional: 23x8.5-12Steering 2WD: 18x8.5-8
4WD: 18x8.5-10Weight transferType Optional hydraulic DimensionsWheelbase 49.2 in.
125 cmGround clearance 6.5 in.
16.5 cmLength Less mower deck: 86.7 in.
220.2 cmOverall width Narrow Width 23x10.5 tires: 51.8 in.
131.6 cm
Wide Width 23x10.5 tires: 60.3 in.
153.2 cmROPS Standard (folding) ROPS certification Two-post: OSHA 1928; Canadian Std.: CSA-352
Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009Overall height with ROPS 82.7 in.
210 cmOverall height with ROPS folded 58 in.
147 cmShipping weight Net weight, 2WD without mower or fuel: 1,675 lb
760 kg
Net weight, 4WD without mower or fuel: 1,835 lb
832 kgMower decksConstruction One-piece stamped: 7-Iron PRO Deck thickness 7 gauge
0.180 in.
4.6 mmSize 60 or 72 in.
152 or 183 cmDeck offset Yes Cutting height 1-6 in.
2.54-15.24 cmBelt tensioning Spring loaded Blade tip speed 18,000 fpm
5,486 m/minCaster wheels Type
Flat free
Size
11x4-5
Front anti-Scalp rollers Yes, gauge wheels Rear anti-scalp rollers Yes, gauge wheels Shipping weight Mower deck (rear discharge)Cutting width 62, 72 in.
157, 183 cmCutting height 1-6 in.
2.5-15.2 cmCaster wheels Type
Flat free
Size
11x4-5
Shipping weight
