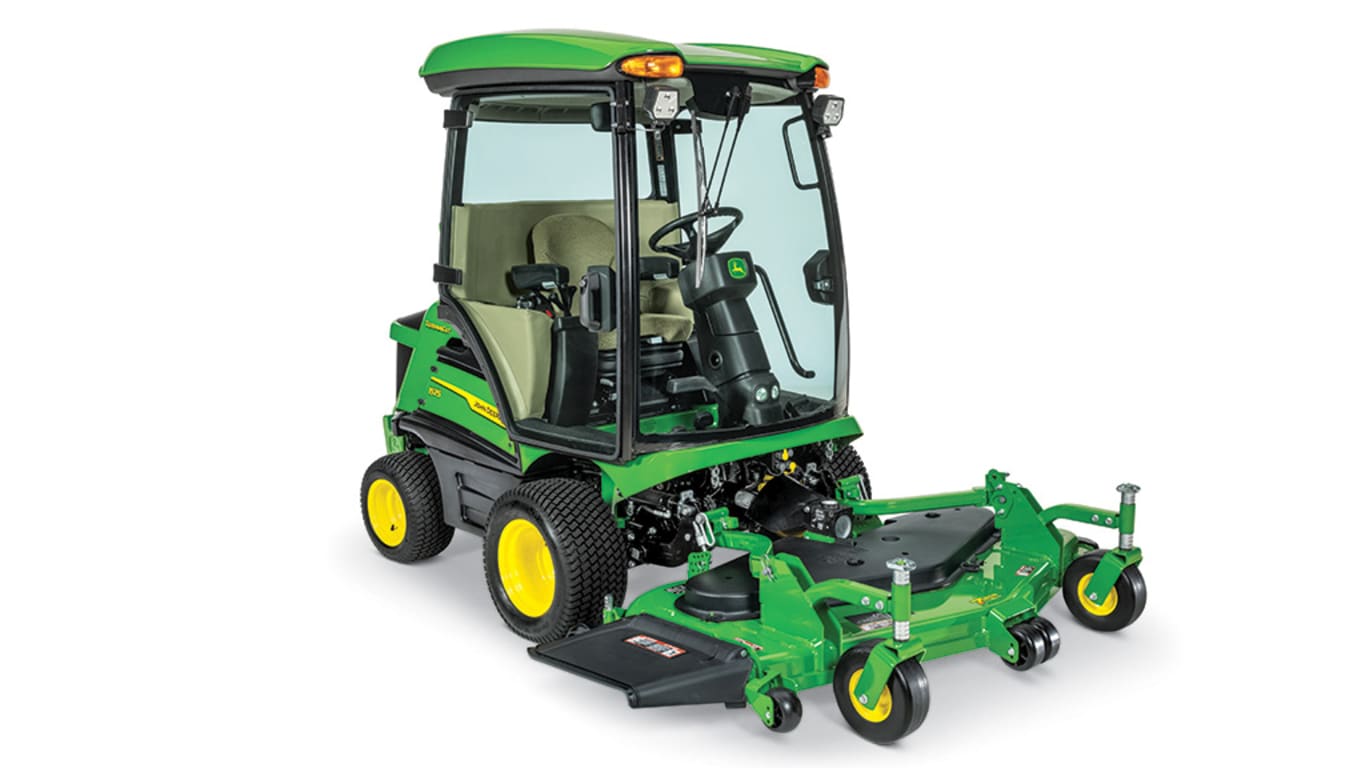

John Deere 1575 TerrainCut™ Front Mower
Shipping calculated at checkout.
×
Vendor : John Deere
Product Type : Front Mower
Sku : 1575
Couldn't load pickup availability
- 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
- Diesel Engine
- Integrated ComfortCab
- Compatible with select front blade, snow blower and broom attachments
-
Key Specs
Engine Manufacturer/model 3TNV88C Engine Power Gross PS: 37.4 hp
27.5 kWFuel tank capacity 16 U.S. gal.
60.6 LMower deck Size 60 or 72 in.
152, 183 cmBlade tip speed 18,000 fpm
5,486 m/minTransmission Hydrostatic full time 4WD, on-demand Speed range 0-12 mph
0-19.3 km/hDrive wheels 23x10.5-12 Caster wheels Flat free, 11x4-5 Warranty 24 months EngineManufacturer/model 3TNV88C Power Gross
PS, 37.4 hp
27.5 kW
Rated engine rpm 3,000 rpm Cylinders Three Displacement 100.2 cu in.
1.64 LMaximum torque At 1,950 rpm: 80.4 lb-ft
109 NmInjection Direct Fuel type Diesel (B20 compatible) Fuel tank capacity 16 U.S. gal.
60.6 LCooling Liquid Cooling capacity 10 U.S. qt
9.5 LAir cleaner Dual element dry type Air restriction indicator Standard Charging system Automotive type Alternator, amp 95 amp Battery 12 V DrivetrainTransmission Hydrostatic full time 4WD, on-demand Speed and direction control Two-pedal foot Cruise control Optional Hi/Lo range No, single speed transmission Travel speedSpeed range Hi forward 0-12 mph
0-19.3 km/hLo forward Hi reverse 0-5 mph
0-8 km/hLo reverse 4-wheel drive Differential lock Final drives PTO PTO clutch PTO drive output HydraulicsType Open center Pump capacity 5.1 U.S. gpm
19.3 L/minSpool valve Front lift, standard Lift cylinders Two SteeringType Hydraulic cylinder Turns lock-to-lock 2 maximum, 1.5 minimum BrakesType Internal wet disk Individual turn brakes Standard Master brake Standard, locking Buyer's notesWarranty 24 months TiresDrive wheels 23x10.5-12 Steering 18x8.5-10 Weight transferType Optional hydraulic DimensionsWheelbase 49.2 in.
125 cmGround clearance 6.5 in.
16.5 cmLength Less mower deck: 86.7 in.
220.2 cmOverall width Narrow Width 23x10.5 tires: 51.8 in.
131.6 cm
Wide Width 23x10.5 tires: 60.3 in.
153.2 cmROPS Factory installed ComfortCab ROPS certification Two-post: OSHA 1928; Canadian Std.: CSA-352
Four-post: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009Overall height with ROPS With cab: 83.9 in.
213 cmOverall height with ROPS folded Shipping weight Net weight without mower or fuel: 2,436 lb
1,105 kgMower decksConstruction One-piece stamped steel; 7-Iron PRO Deck thickness 7 gauge
0.180 in.
4.6 mmSize 60 or 72 in.
152 or 183 cmDeck offset Yes Cutting height 1-6 in.
2.54-15.24 cmBelt tensioning Spring loaded Blade tip speed 18,000 fpm
5,486 m/minCaster wheels Type
Flat free
Size
11x4-5
Front anti-Scalp rollers Yes, gauge wheels Rear anti-scalp rollers Yes, gauge wheels Shipping weight Mower deck (rear discharge)Cutting width 62, 72 in.
157, 183 cmCutting height 1-6 in.
2.54-15.24 cmCaster wheels Type
Flat free
Size
11x4-5
