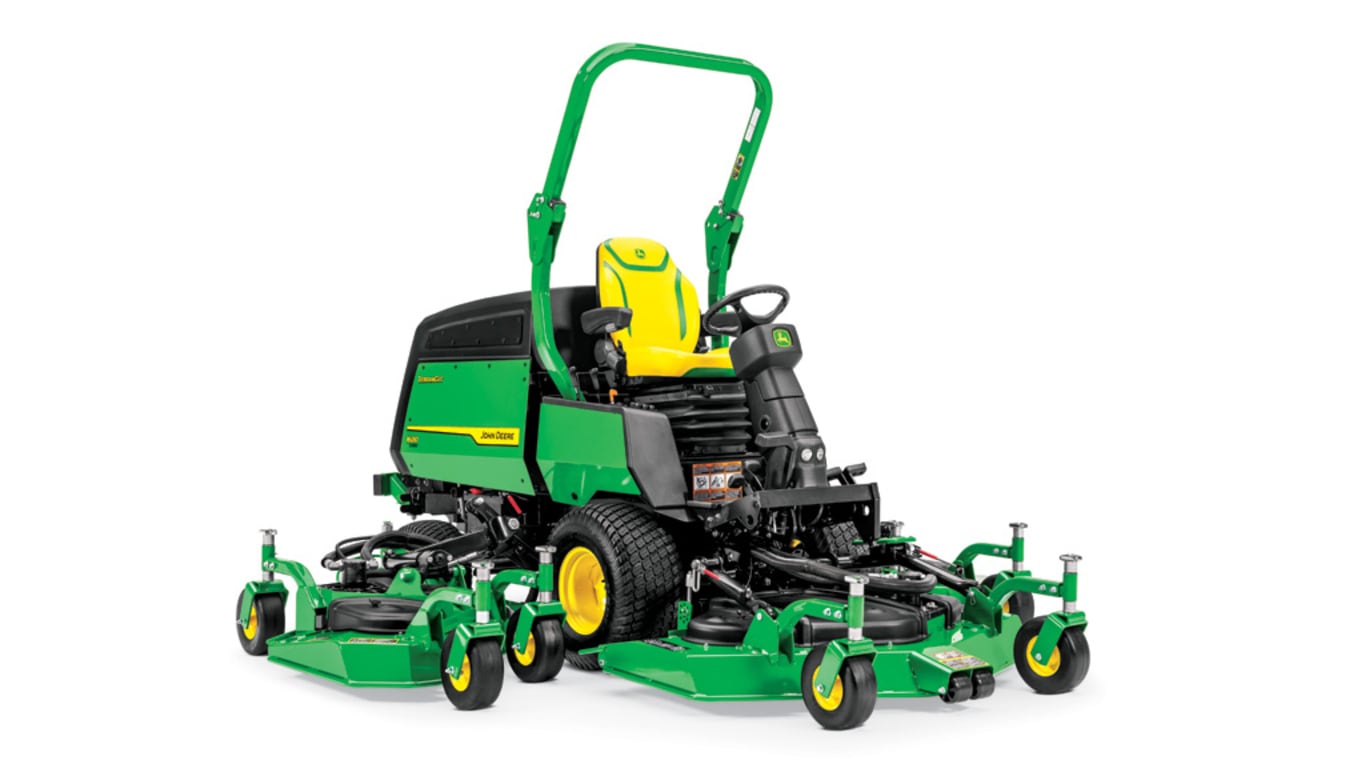

Description:

Features:

• Turbocharged diesel engine
• B20 compatible
• Rear-discharge decks
• FT4 engine compliant

Specifications:

• Engine Manufacturer/Model:
• 4TNV86CT-DJWM (T4)
• Engine Type:
• Diesel, 4-cycle
• Engine Power:
• Gross Power SAE J1995 at 3,000 rpm: 60 hp (44 kW)
• Displacement:
• 2,091 cc (127.6 cu in)
• Bore and Stroke:
• 86 x 90 mm (3.4 x 3.5 in.)
• Injection:
• Direct
• Cylinders:
• Four
• Rated Engine Speed:
• 3,000 rpm
• Operating Range:
• 1,400-3,030 rpm with isochronous governor
• Lubrication:
• Pressurized by lobe-style pump
• Oil Filter:
• Spin-on
• Cooling:
• Liquid-cooled centrifugal water cooling system
• Cooling System Capacity:
• 7.5 L (2.5 U.S. gal.)
• Crankcase Capacity:
• 5.8 L (6.1 U.S. qt)
• Compression Ratio:
• 19:1
• Max Torque (Net Continuous):
• 117.3 lb-ft (159 Nm)
• Air Cleaner:
• Dual element, dry type
• Fuel Type:
• Diesel
• Fuel Tank Capacity:
• 83.3 L (22 U.S. gal.)
• Fuel System:
• Electric fuel transfer pump, mechanical fuel pump, and replaceable fuel filter
• Fuel Consumption:
• Full Load: 12.7 L/hr (3.33 U.S. gal./hr)
• Half Load: 7.31 L/hr (1.93 U.S. gal./hr)
• Fuel Transfer Pump:
• Electric
• Fuel System Features:
• Self-bleeding system
• Water Separator:
• Replaceable, 100-mesh element
• Transmission and Drivetrain
• Transmission Type:
• Hydrostatic
• Transaxle Type:
• Dual range, Tuff Torque (Kanzaki)
• Four-Wheel Drive:
• On-demand or full-time mechanical rear-wheel drive
• Differential Lock:
• Mechanical, foot-activated
• Final Drive:
• Planetary
• Traction Drive Pump:
• Axial piston pump, 3 cu in (49 cc)
• Motor:
• Axial piston pump, 2 cu in (33 cc)
• Hydraulic Reservoir Capacity:
• 53 L (14 U.S. gal.)
• Hydraulic System:
• Open center, hydraulic, closed loop for implement drive
• Suspension and Brakes
• Suspension:
• Fully independent front and rear dual A-arm with adjustable coils
• Brakes:
• Front/rear hydraulic disc with twin piston front calipers
• Parking Brake: Hand brake
• Steering:
• Tilt steering wheel with 2.5 turns lock-to-lock
• Multi-trac tires
• Tires and Wheels
• Drive Tires:
• 26x12-12
• Caster Wheels:
• Four, 11x4-5, flat-free (front and wing deck)
• Steering Tires (Rear):
• 18x9.5-8
• Ply Rating:
• 6 PR (Both drive and steering tires)
• Dimensions and Capacities
• Wheelbase:
• 152 cm (60 in.)
• Length (with deck):
• 335 cm (132 in.)
• Width with Decks Down:
• 340 cm (134 in.)
• Height with ROPS:
• ROPS up: 249 cm (98 in.)
• ROPS down: 188 cm (74 in.)
• Transport Width:
• 213 cm (84 in.)
• Ground Clearance:
• 16.5 cm (6.5 in.)
• Vehicle Weight:
• 1,892.8 kg (4,173 lb)
• Machine Weight without Deck:
• 1,474.2 kg (3,264 lb)
• Mower Decks
• Deck Sizes:
• 62 in. (157 cm)
• 94 in. (239 cm)
• 128 in. (325 cm)
• Blade Tip Speed:
• 13,000 fpm (3,962 m/min)
• Deck Construction:
• Fabricated steel, 7 gauge (0.180 in., 4.6 mm)
• Height of Cut Range:
• 2.5-13.9 cm (1-5.5 in.)
• Deck Type:
• Rear discharge, energy-absorbing wing decks
• Blade Length:
• 22 in. (55.88 cm)
• Blade Width:
• 2.5 in. (6.35 cm)
• Blade Thickness:
• 0.312 in. (0.79 cm)
• Spindle Bearings:
• Greaseable
• Deck Lift:
• Hydraulic lift with three two-function switches
• Energy-Absorbing Wing Decks:
• Yes
• Mower Deck Circuits:
• Series
• Interchangeable Blades:
• Yes, between all deck sizes
• Mowing Rate:
• 11 acres/hr (85% field efficiency at 10 mph or 16 km/h)
• Operator Station
• Seat:
• Air-ride suspension seat, adjustable, deluxe, high-backed with back angle and lumbar adjustment, adjustable armrests
• Throttle:
• Hand
• Forward/Reverse:
• Two-pedal operation
• Controls:
• Three two-function switches for mower lift
• Safety Features:
• Safety interlock and operator presence system
• Indicator Lights:
• Engine air heater, oil pressure, engine temperature, fuel gauge, hydraulic oil temperature
• PTO Engagement:
• Electric solenoid
• PTO Type:
• Hydraulic, independent
• Warranty
• Standard Warranty:
• 24 months
