Description:

Features:

• Standard LED headlights and fender lights
• Comfortable, marine-grade seat stays in top condition
• Larger, heavier frame for added stability

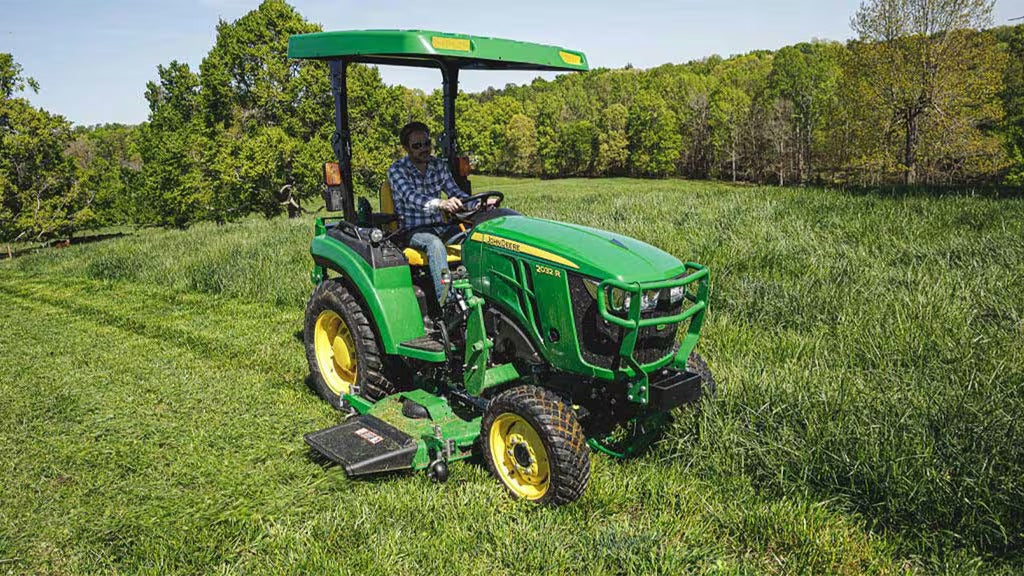

• Up to 72" Auto Connect™ mid-mower deck can be installed or removed in under 5 minutes

Specifications:

• Manufacturer: Yanmar®
• Engine Model: 3TNV88C-NJT2
• Engine Power (Gross) (SAE J1995 Rated Power): 22.9 kW (30.7 hp / 31.2 PS) at 2500 rpm
• Power Take-Off (PTO) Power: 18 kW (24.2 hp)
• Rated Engine Speed: 2500 rpm
• Type: Direct Injection
• Injection Pump Type: Direct Injection
• Aspiration: Natural
• Emissions Compliance: Final Tier 4
• Cylinders/Displacement: 3 cylinders, 1.642 L (100.2 cu in.)
• Cylinder Liners: Cast-in-block
• Bore and Stroke: 88x90 mm (3.46x3.54 in.)
• Compression Ratio: 19.1:1
• Lubrication: Pressurized
• Cooling System: Water pump
• Air Cleaner: Dual element
• Engine Torque at Rated Speed: 87.5 Nm (64.5 lb-ft)
• Fuel Tank Capacity: 32 L (8.5 U.S. gal.)
• Battery Size: 500 CCA
• Alternator (12-V): 85 amp
• Starter Size: 1.4 kW (1.9 hp)
• Transmission & Drive
• Transmission Type: Hydrostatic Transmission (HST)
• Final Drive: Spur gear
• Creeper: No
• Differential Lock: Yes
• Brakes: Wet disc
• Clutch: Wet disc
• Brake (for Mid and Rear PTO): Wet disc
• Cruise Control: Standard
• Steering: Power steering
• Axle Capacity:
• Front: 880 kg (1940 lb)
• Rear: 1800 kg (3968 lb)
• Steering Hydraulics: 15 L/min (4 gpm)
• Implement Hydraulics: 20.2 L/min (5.3 gpm)
• Maximum Operating Pressure: 172 bar (2495 psi)
• Pump Rated Output:
• Steering Pump: 15 L/min (4 gpm)
• Implement Pump: 20.2 L/min (5.3 gpm)
• Total Hydraulic Pump Output: 35.2 L/min (9.3 gpm)
• Hydraulic System Type: Open center
• Remote Control Valves Available: Up to three
• Draft Control Sensing: Position control
• Power Take-Off (PTO)
• PTO Speed (Rear): 543 rpm
• PTO Speed (Mid): 1998 rpm
• Control: Independent
• PTO Clutch: Wet disc
• PTO Brake (for Mid and Rear PTO): Wet disc
• 3-Point Hitch & Hydraulic Lift
• Hitch Type: Category 1
• Lift Capacity (24-in. behind link arms): 615 kg (1356 lb)
• 3-Point Hitch Control: Independent
• Fluid Capacities
• Crankcase with Filter: 4.5 L (4.8 U.S. gal.)
• Final Drive: Spur gear
• Differential Lock: Yes
• Dimensions & Weight
• Wheelbase: 1723 mm (67.8 in.)
• Turning Radius with Brakes: 2.46 m (8.07 ft)
• Approximate Shipping Weight:
• Open Station: 1306 kg (2879 lb)
• Cab: Not applicable
• Tires
• Front Tires:
• R1 Ag: 7.00-12
• R3 Turf: 23x8.50-14
• R4 Industrial: 23x8.50-14
• R3 Turf Radial: 200/60 R15
• Rear Tires:
• R1 Ag: 12.4-16
• R3 Turf: 14-17.5
• R4 Industrial: 14-17.5
• R3 Turf Radial: 300/70 R20
• Operator Station
• Platform Type: Semi-flat
• Rollover Protective Structure (ROPS): Foldable, ASABE S478
• Toolbox: Yes
• Tilt Steering Wheel: Yes
• 12-V Outlet: Yes
• Additional Features
• Hydraulic Pump Type: Dual gear
• Draft Control Sensing: Position control
• Hydraulic System Type: Open center
• Power Take-Off (PTO): Independent
