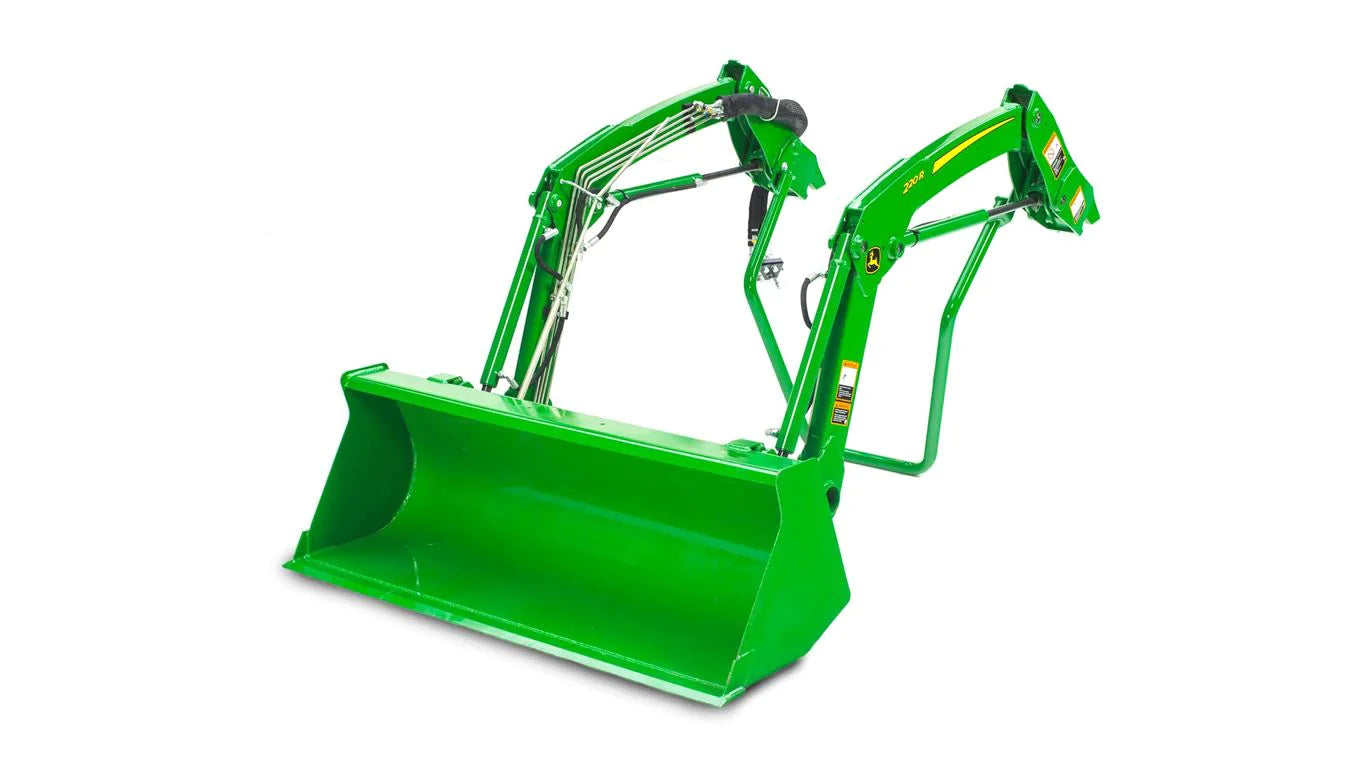

John Deere 220R for 2032R and 2038R Compact Tractors
Vendor : John Deere
Product Type : Tractor Loader
Sku : 220R-220R
Couldn't load pickup availability
Compatible with 2032R and 2038R tractors Quik-Park™ mounting system for easy on, easy off in minutes Optional single-point hydraulic coupler connects hydraulics with pull of a lever Quik-Change™ Bucket System for fast and easy attachment changeovers Mechanical Self-Leveling (MSL) Loader option with 1,377 lb (626 kg) lift capacity.
|
John Deere 220R Loader |
|
| Maximum lift height | 2160 mm 85 in. |
|||
|---|---|---|---|---|
| Lift capacity at full height | Measured at pivot 509 kg 1120 lb Measured at 500 mm ahead of pivot 365 kg 803 lb |
|||
| Boom breakout force | Measured at pivot 886 kgf 1949 lbf Measured at 500 mm ahead of pivot 618 kgf 1360 lbf |
|||
| Bucket rollback force capacity | At ground-level line 972 kgf 2138 lbf |
|||
| Clearance at full height - bucket dumped | 1667 mm 66 in. |
|||
| Dump angle, degrees | 36 degree (angle) | |||
| Rollback angle, degrees | 34 degree (angle) |
| Model | 2032R, 2038R | |||
|---|---|---|---|---|
| Front tire | 23x8.50-14 4PR R4 | |||
| Rear tire | 14-17.5 6PR R4 | |||
| Wheelbase | 1725 mm 68 in. |
|||
| Pump capacity | 20.2 L/min 5.3 gpm |
|||
| Rated pressure | 17.23 MPa 2499 psi |
