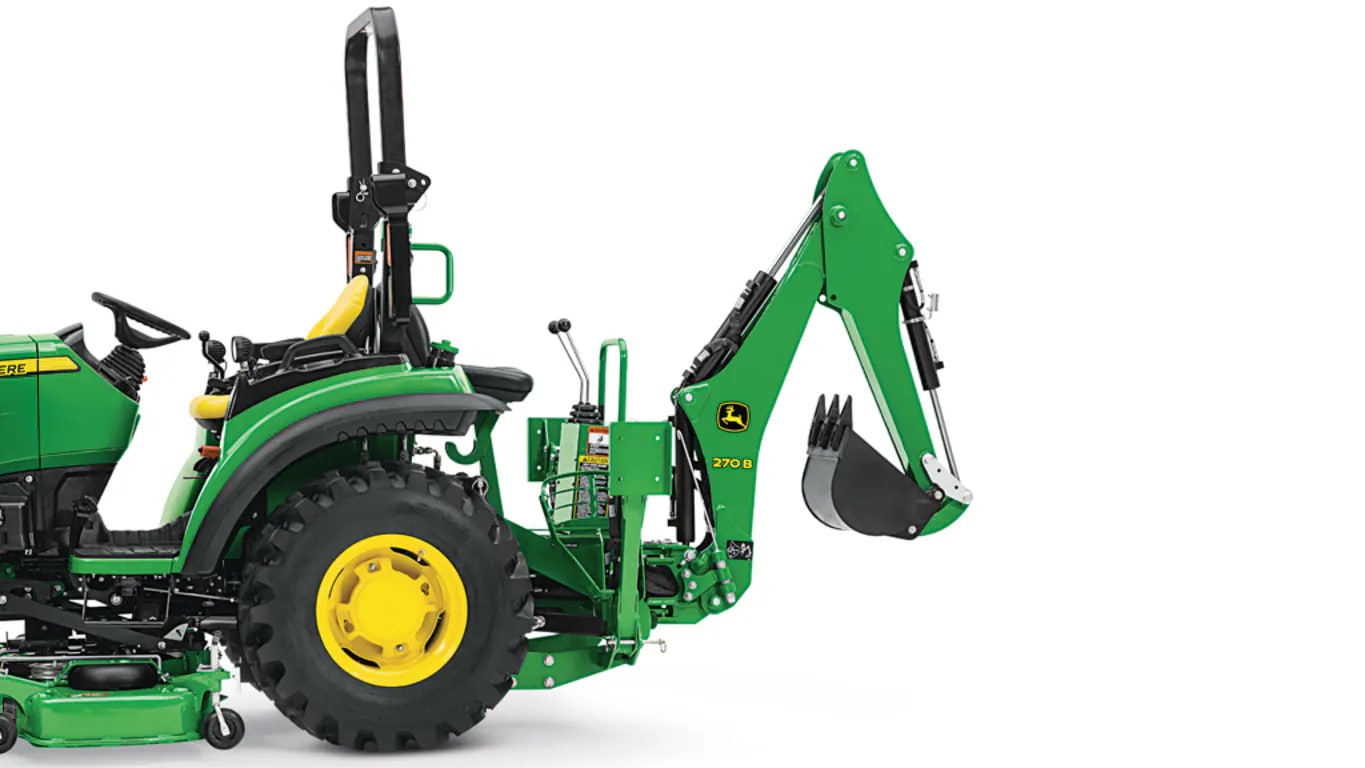

Description:

Features:

• 3-point Hitch Quick-attach Mounting System
• Large, easy-access step and hand brace
• Upgraded valve provides smooth hydraulics for precise control
• Available field-install thumb option

Specifications:

• Digging and Reach Performance
• Digging Depth: 2.13 m (7 ft, 0 in.)
• Reach from Center Line of Swing Pivot: 3.0 m (9 ft, 9 in.)
• Loading Height (Bucket at 60°): 1.74 m (6 ft, 1 in.)
• Loading Reach (Bucket at 60°): 1.13 m (3 ft, 7 in.)
• Undercut: 43 cm (17 in.)
• Digging Forces
• SAE Dipperstick Digging Force: 6681 N (1502 lb)
• SAE Bucket Digging Force: 11,005 N (2474 lb)
• Bucket Control Main Relief Valve Pressure: 2370 psi
• Swing and Rotation
• Swing Arc: 150° (angle)
• Bucket Rotation: 180° (angle)
• Stabilizers
• Stabilizer Spread Width (Up): 1.47 m (4 ft, 10 in.)
• Stabilizer Spread Width (Down): 1.92 m (6 ft, 7 in.)
• Stabilizer Type: Hydraulic stabilizers for stability during digging
• Boom Lift Capacity
• Boom Lift Capacity: 116 kg (256 lb)
• Bucket Specifications
• Bucket Widths:
• 203.2 mm (8 in.)
• 304.8 mm (12 in.)
• 406.4 mm (16 in.)
• Bucket Capacities (SAE)
• 203.2 mm (8 in.) Bucket:
• Struck Capacity: 0.42 cu ft
• Heaped Capacity: 0.46 cu ft
• 304.8 mm (12 in.) Bucket:
• Struck Capacity: 0.66 cu ft
• Heaped Capacity: 0.76 cu ft
• 406.4 mm (16 in.) Bucket:
• Struck Capacity: 0.90 cu ft
• Heaped Capacity: 1.06 cu ft
• Shipping Weight per Bucket:
• 203.2 mm (8 in.) - 40 lb (18.1 kg)
• 304.8 mm (12 in.) - 50 lb (22.7 kg)
• 406.4 mm (16 in.) - 60 lb (27.2 kg)
• Transport Dimensions
• Transport Height: 1.92 m (6 ft, 3 in.)
• Transport Overhang: 1.1 m (3 ft, 6 in.)
• Weight
• Attachment Weight (with 0.4-m or 16-in. bucket): 350 kg (773 lb)
• Key Features and Benefits
• Efficient Digging: The backhoe offers significant digging depth (7 ft) and strong digging forces for a wide range of tasks.
• Bucket Options: Multiple bucket widths (8 in., 12 in., 16 in.) allow for versatile digging, with varying capacities for different soil types and project requirements.
• Compact Design: With a transport height of just 1.92 m, it remains compact enough for easy transportation while providing excellent reach and digging power.
• Hydraulic Stabilizers: The stabilizers ensure stability during operation, particularly in uneven terrain, maximizing safety and efficiency.
• Heavy-Duty Construction: Built to handle tough jobs with a durable frame and heavy-duty hydraulic components.
