Description:

Features:

• AutoConnect™ deck compatible for deck attach/detach in seconds

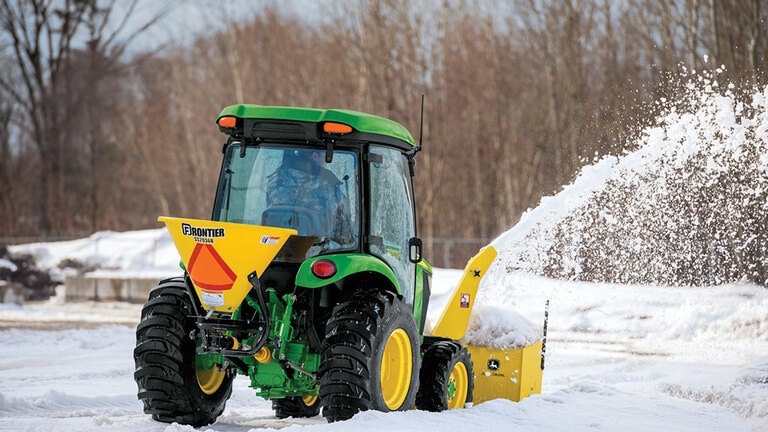

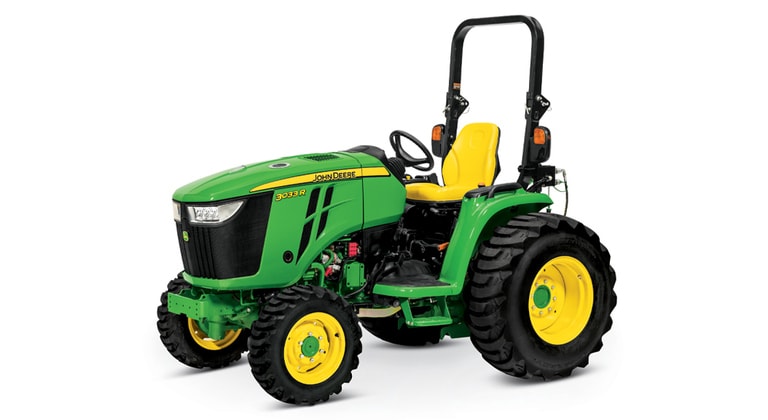

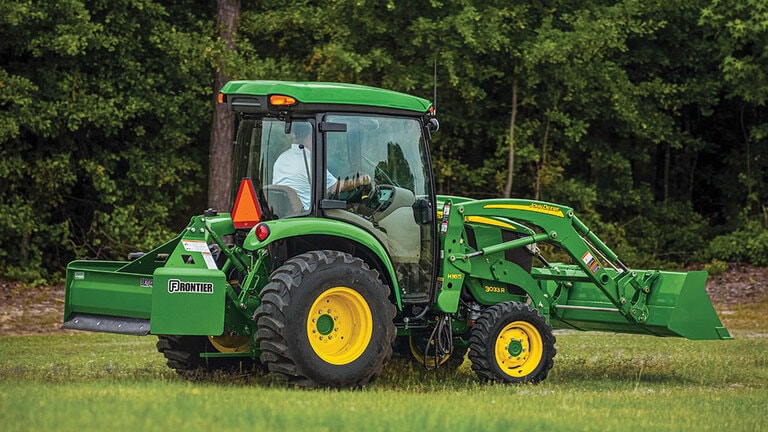

• Cab or Open Station configuration available
• PowrReverser™ or E-hydro transmission with Twin Touch™ pedals

Specifications:

Engine

• Manufacturer: Yanmar®
• Engine Model: 3TNV88C-MJTV
• Engine Power (Gross): 23.7 kW (31.8 hp, 32.2 PS) at 2600 rpm
• Power Take-Off (PTO) Power:
• PowrReverser™ Transmission: 19.5 kW (26.1 hp)
• eHydro™ Transmission: 17.2 kW (23 hp)
• Rated Engine Speed: 2600 rpm
• Engine Type: Diesel, High Pressure Common Rail Direct Injection
• Aspiration: Natural
• Emissions Compliance: Final Tier 4
• Cylinders/Displacement: Three cylinders, 1.64 L (100 cu in.)
• Cylinder Liners: Cast-in-block
• Bore and Stroke: 88 x 90 mm (3.46 x 3.54 in.)
• Compression Ratio: 19.1:1
• Lubrication: Pressurized
• Cooling System: Liquid
• Air Cleaner: Dual element
• Engine Torque at Rated Speed: 87 Nm (64.2 lb-ft)
• Fuel Tank Capacity:
• Open Operator Station (OOS): 37.4 L (10 U.S. gal.)
• Cab eHydro Transmission: 47.6 L (12.6 U.S. gal.)

Electrical System

• Battery Size: 500 CCA
• Alternator (12-V): 75 amp
• Starter Size: 1.4 kW (1.9 hp)

Transmission and Drive

• Standard Transmission: PowrReverser™ (12F/12R) or eHydro™ (three-range, infinitely variable)
• Transmission Type: Open center
• Final Drive: Spur gear
• Brakes: Multi-plate wet disc
• Steering: Hydrostatic power steering
• Clutch: Wet disk (PowrReverser transmission)
• Axle Capacity:
• Front: 1450 kg (3197 lb)
• Rear: 1850 kg (4079 lb)
• Cruise Control:
• PowrReverser Transmission: Not applicable
• eHydro Transmission: Standard
• Differential Lock: Yes
• Transmission Fluid Capacities:
• PowrReverser Transmission: 24.6 L (6.5 U.S. gal.)
• eHydro Transmission: 26.5 L (7 U.S. gal.)
• Cab eHydro Transmission Only: 26.5 L (7 U.S. gal.)

Hydraulics

• Hydraulic Type: Open center
• Pump Rated Output:
• Steering: 23.5 L/min (6.2 gpm)
• Implement: 34.3 L/min (9.1 gpm)
• Total: 57.8 L/min (15.3 gpm)
• Pump Type: Single gear
• Maximum Operating Pressure: 172 bar (2495 psi)
• Draft Control Sensing: Position control
• Remote Control Valves: Available (up to six rear remotes)
• 3-Point Hitch Type: Category 1
• Lift Capacity (24-in. Behind Link Arms): 995 kg (2194 lb)

Power Take-Off (PTO)

• Standard PTO Speed:
• Rear: 540 rpm
• Mid (eHydro transmission only): 2100 rpm
• PTO Control: Independent
• PTO Clutch: Wet disk
• PTO Brake: Wet disk (for mid and rear PTO)

Operator Station and Cab

• Rollover Protective Structure (ROPS): Foldable
• Platform Type: One-piece semi-flat
• Operator Station Compliance: Meets OSHA, SAE, and CSA standards for rollover protection
• Visibility: 360-degree angle
• Doors: Two
• Noise Rating: 80 dBA
• Seat Equipment: Scissor-link
• Cab:
• Air Conditioning: Heat only (for cab versions)
• Cab Visibility: Optimized for clear all-around view

Dimensions

• Wheelbase: 1727 mm (68 in.)
• Front Axle Clearance:
• Minimum: 171 mm (6.7 in.)
• Maximum: 299 mm (11.8 in.)
• Turning Radius (With Brakes): 2.7 m (8.8 ft)
• Turning Radius (Without Brakes): 2.8 m (9.2 ft)
• Approximate Shipping Weight:
• Open Operator Station (OOS): 1353 kg (2983 lb)
• Cab: 1633 kg (3600 lb)

Tires

• Front Tires:
• R1 Bar: 7-14
• R3 Turf: 27x8.50-15
• R3 Turf Special: 25/10.5LLx15
• R4 Industrial: 25x8.5-14 or 27x8.5-15
• Rear Tires:
• R1 Bar: 11.2-24
• R3 Turf: 41x14-20
• R3 Turf Special: 41x18LL-16.1
• R4 Industrial: 15-19.5 or 43x16-20
• Front Tread Range: 1117 mm (44 in.)
• Rear Tread Spacing: 1031 mm (40.6 in.)
