Description:

Features:

• Easily lift and lower blower with spring-assisted foot pedal or try hydraulic power lift for fingertip control

• Cast-iron gear boxes and shear-bolts protect unit against large chunks of ice

• Rotate chute up to 200-degrees, from your seat, for exact snow placement

• Change snow height on-the-go with the adjustable spout deflector

Please call us for the total price, including all required attaching components plus installation.

Specifications:

Auger

• Diameter: 12 in. (30.5 cm)
• Drive: In-line V-belt
• Gearbox: Cast-iron worm-drive
• Protection: Shear bolt (one per auger half)
• Bearings: Sealed, 0.75 in. (19 mm)
• Drift Knife: Optional (both sides)

Blower Fan

• Drive: Cast-iron right-angle gearbox
• Material: UHMW polyethylene
• Size: 4.75 x 14 in. (12.1 x 35.6 cm)

Scraper Blade

• Type: Replaceable scraper edge

Lift System

• Type: Spring-assisted foot lift or hydraulic (for X300 Series)
• Lift Height: 4 in. (102 mm)

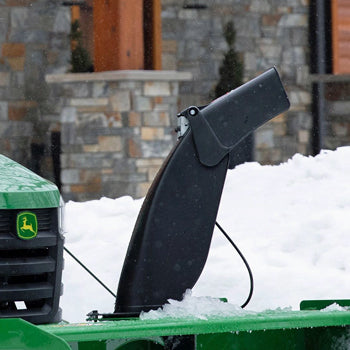

Spout

• Diameter: 6 in. (15.2 cm)
• Rotation: 100° to each side
• Control: Manual remote handle

Dimensions

• Clearing Width: 44 in. (112 cm)
• Overall Width: 44 in. (112 cm)
• Approx. Weight: 180 lb (81.6 kg)
