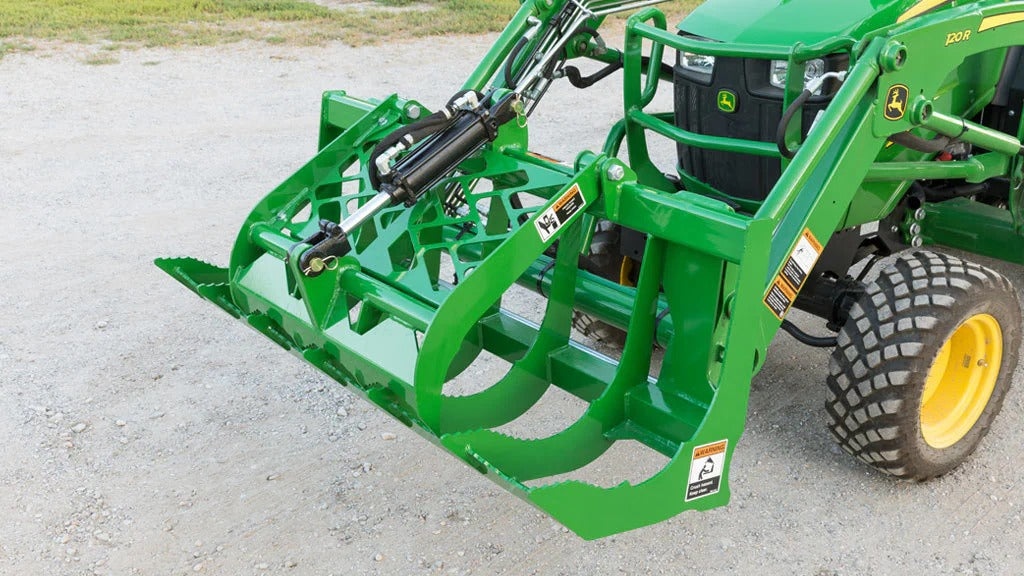

Description:

• Quick and easy connection
• Replaceable, weld-on wear tips

Specifications:

• Width: 134.62 cm (53 in.)
• Height: 63.5 cm (25 in.)
• Depth: 58.9 cm (23.2 in.)
• Cutting Width: 134.62 cm (53 in.)
• Grapple Opening: 91.4 cm (36 in.)
• Dimensions
• Current Series Style: 100, 200, and 300 (300 on 3E Tractor Only)
• Attachment Type: Grapple (or other specific attachment type if applicable)
• Weight
• Operational Weight: 92 kg (203 lb)
• Shipping Weight: 101.1 kg (223 lb)
• Grapple Tine Specifications
• Upper Tines: 4
• Lower Grapple Tines: 7
• Grapple Tine Spacing: 21.6 cm (8.5 in.)
• Quantity: 1
• Hydraulic Cylinders
• Max Clamping Force: 4203.5 N (945 lb-ft)
• Operational Details
• Set-Up Time: 0.25 hours
• Warranty Period: 1 year
