Description:

Features:

• 19-hp (14.2-kW)
• 36" deck, 7-gauge fabricated deck
• Mow up to 8 mph
• Warranty: 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation

Specifications:

Engine

• Manufacturer/Model: FX600V
• Engine Power: 19 hp (14.2 kW) at 3,600 rpm
• Displacement: 36.8 cu in. (603 cc)
• Cylinders: Two, V-twin
• Crankcase Capacity: 1.8 qt (1.7 L) with filter
• Oil Filter: Full flow, replaceable
• Lubrication: Full pressure
• Cooling: Forced air with integrated clean-out ports
• Air Cleaner: Heavy-duty canister type
• Fuel Type: Gasoline
• Fuel Tank Capacity: 5.6 U.S. gal (21.2 L)
• Fuel Tank Switch/Shut-off Valve: Yes
• Charge System: 20A at 3,600 rpm
• Battery Voltage: 12 V
• Cold Cranking Amp: 300 CCA
• Hour Meter: Digital
• Operator Presence Starting System: Yes

Transmission

• Type: Separate hydraulic pumps and motors
• Hydraulic Pumps: 0.61 cu in (10 cc)
• Wheel Motors: 12 cu in (196 cc)
• Travel Speed:
• Forward: Infinite, 0-8 mph (0-12.9 km/h)
• Reverse: Infinite, 0-3.5 mph (0-5.6 km/h)
• Speed and Direction Control: Twin hand-controlled levers
• Hydraulic Capacity: 5 qt (4.7 L) with filter, dry
• Hydraulic Oil Cooler: Radiator core
• Filter: Spin-on replaceable

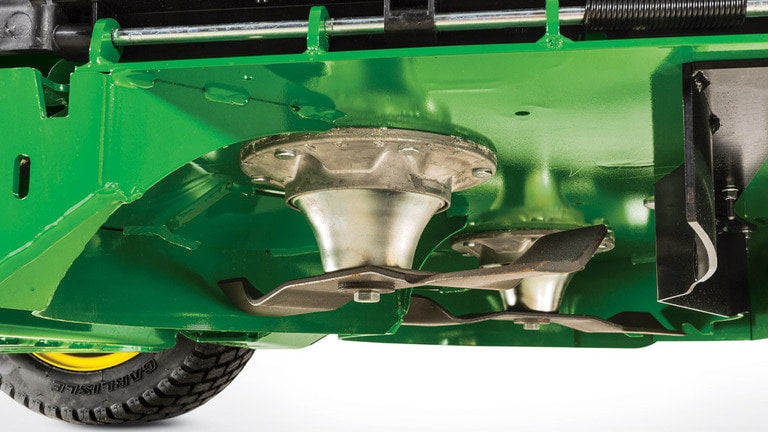

Mower Deck

• Deck Size: 36 in. (91 cm) fabricated
• Deck Construction: Fabricated steel, floating mount system
• Deck Thickness: 7 gauge (0.180 in. / 4.6 mm)
• Discharge: Side
• Height-of-Cut Range: 1.5-5 in. (3.8-12.7 cm)
• Height-of-Cut Increments: 0.25 in. (0.64 cm)
• Blade Tip Speed: Approximately 18,000 fpm (5486 m/min)
• Number of Blades: 2

Wheels and Tires

• Drive Wheels: 18x8.5-10 pneumatic
• Caster Wheels: 11x4-5 flat free
• Load Rating: 4 PR
• Brakes: Electro-magnetic with 125 lb-ft (169 Nm) torque
• Park Brake: Tire engagement, hand lever actuation

Dimensions

• Length: 62 in. (157.5 cm)
• Width with Chute Down: 49.5 in. (126 cm)
• Height: 46 in. (117 cm)
• Weight: 720 lb (327 kg)

Warranty

• Duration: 36 months or 1200 hours, whichever comes first
• First 24 Months: No hour limitation
