Description:

Features:

• 27-hp (20.1-kW)
• 54” and 60” 7Iron™ PRO decks
• Mow up to 10 mph
• Warranty: 36 months or 1200 hours, whichever comes first; First 24 months, no hour limitation

Specifications:

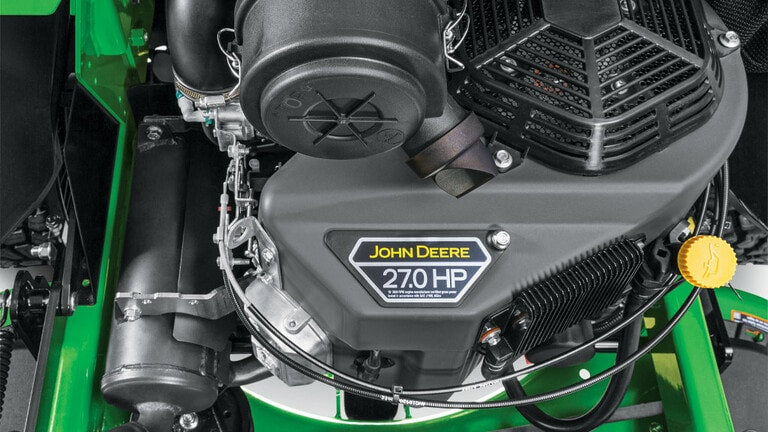

• Engine:
• Manufacturer/Model: FX850V
• Power: Gross at 3,600 rpm: 27 hp (20.1 kW)
• Displacement: 52.0 cu in. (852 cc)
• Cylinders: Two, V-twin
• Crankcase Capacity: With filter, 2.4 qt (2.3 L)
• Oil Filter: Full flow, replaceable
• Lubrication: Full pressure
• Cooling: Forced air, with integrated clean out ports and oil cooler
• Air Cleaner: Heavy-duty canister type with safety element
• Fuel Type: Gasoline
• Fuel Tank Capacity: 12 U.S. gal. (45.3 L)
• Fuel System: No fuel shut-off valve
• Electrical System:
• Charge System: At 3,600 rpm 20A
• Battery Voltage: 12 V
• Cold Cranking Amp: 300 CCA
• Hour Meter: Display panel (includes fuel level, engine speed, system voltage, low engine oil pressure, diagnostics)
• Operator Presence Starting System: Yes
• Transmission:
• Type: Tuff Torq TZT13 IHT
• Hydraulic Pumps: 0.79 cu in. (13 cc)
• Wheel Motors: 13 cu in. (213 cc)
• Speed Range:
• Forward: Infinite, 0-10 mph (0-16.1 km/h)
• Reverse: Infinite, 0-5 mph (0-8.0 km/h)
• Speed and Direction Control: Twin hand-controlled levers
• Hydraulic Capacity: 6.0 U.S qt (5.7 L)
• Hydraulic Oil Cooler: Two 8.5 in. (22 cm) fans
• Filter: Two internal and replaceable
• Tires:
• Drive Wheels: 22x12-12 pneumatic / 22x11N12 Tweel
• Load Rating: 4 PR
• Caster Wheels: 13x5-6 (flat free)
• Front Anti-Scalp Rollers: RH, center, LH
• Brakes:
• Type: Electro-magnetic with brake, 200 lb-ft (271 Nm)
• Park Brake: Internal wet disk, hand lever actuation
• PTO (Power Take-Off):
• Drive: V-belt
• Size:
• 54-in. (137-cm) 7Iron™ PRO side-discharge
• 60-in. (152-cm) 7Iron™ PRO side-discharge
• Deck Construction: 7-Iron™ PRO: one-piece forged steel
• Deck Thickness: 7 gauge (0.180 in. / 4.6 mm)
• Mower Deck:
• Discharge: Side
• Height-of-Cut Range: 1.5-5 in. (3.8-12.7 cm) with 0.25 in. (0.64 cm) increments
• Blade Tip Speed: Approximately 18,000 fpm (5486 m/min)
• Number of Blades: 3
• Dimensions:
• Length:
• Foot platform up: 67.25 in. (171 cm)
• Foot platform down: 72 in. (183 cm)
• Width:
• With chute down: 68 in. (173 cm) / 74 in. (188 cm)
• Height: 48 in. (122 cm)
• Weight:
• 54 in. deck: 1095 lb (497 kg)
• 60 in. deck: 1120 lb (508 kg)
• Warranty:
• 36 months or 1200 hours, whichever comes first.
• First 24 months, no hour limitation.
