Description:

Features:

• 22 hp (16.4 kW)* V-Twin Engine
• 42-in. Edge™ Mower Deck
• Hydrostatic Transmission w/side-by-side pedals
• Easy Change™ 30-Second Oil Change System
• 15-in Open-Back seat
• Easy to read fuel gauge
• 2 year/120 hour bumper-to-bumper warranty

Specifications:

• Engine Power: 22 hp (16.4 kW)
• Engine Manufacturer/Model: 44N677 (M44)
• Engine Type: Overhead valve, full-pressure lube, oil filter
• Engine Displacement: 44.2 cu in. (724 cm³)
• Cylinders: V-twin
• Cooling Method: Air
• Air Cleaner: Cartridge
• Fuel System: Pulse pump and carburetor
• Oil Change: John Deere Easy Change™ 30-second oil change system
• Fuel Tank Capacity: 2.4 U.S. gal. (9.1 L)
• Fuel Delivery: Pulse pump, carburetor

Electrical System

• Battery: 12 V, 300 CCA
• Charging System: Regulated, 8 amp
• Engine Starter: Bendix type
• Hour Meter: Yes
• Headlights: Two standard, incandescent
• 12-V Outlet: No

Transmission & Control

• Transaxle Type: TLT200 hydrostatic, two-wheel drive
• Transaxle Control: Side-by-side pedals
• Forward Speed: 0-5.5 mph (0-8.9 km/h)
• Reverse Speed: 0-3.2 mph (0-5.2 km/h)
• Brakes: Internal wet disk
• Cruise Control: Standard

Mower Deck & Lift System

• Cutting Width: Edge™ mower deck, 42 in. (107 cm)
• Lift System Type: Spring-assisted hand-grip lever
• Mower Deck Construction: Stamped steel deck shell
• Mower Deck Material: Steel, 13 gauge (0.090 in./2.3 mm)
• Mower Drive System: Manual power take-off (PTO)
• Mower Wheel Adjustment: One bolt
• Mower Wash Port: Yes

Dimensions & Weight

• Height: 44 in. (1118 mm)
• Overall Length: 69.7 in. (1770 mm)
• Wheelbase: 48.9 in. (1242 mm)
• Width with Mower: 55.2 in. (1402 mm)
• Width with Mower (deflector raised for storage): 46.5 in. (1181 mm)
• Width without Mower: 39.2 in. (996 mm)
• Weight (Mower, no fuel): 444 lb (201 kg)

Tires

• Rear Tires: 20x8-8
• Front Tires: 15x6-6

Chassis & Steering

• Frame: Full-length welded steel
• Steering: Two-piece with open-back design
• Turning Radius: 18 in. (45.7 cm)
• Uncut Circle Radius: 25 in. (63.5 cm)
• Seat Back Height: 15 in. (38 cm)
• Seat Suspension: Tilt, two coil springs

Warranty

• U.S. Warranty: 2 year/120 hour bumper-to-bumper

Optional Equipment

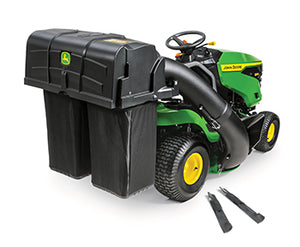

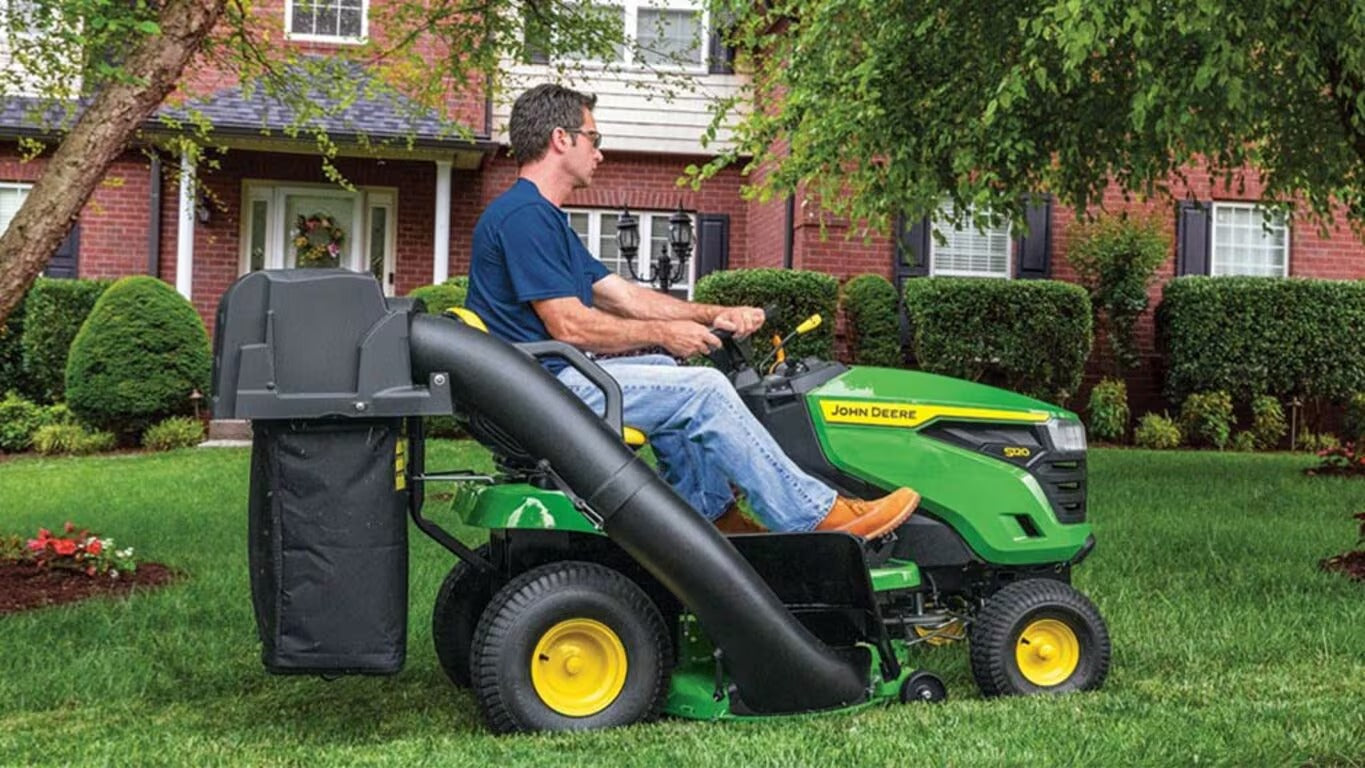

• Rear Bagger: 2-bag, 6.5 bu (229 L)

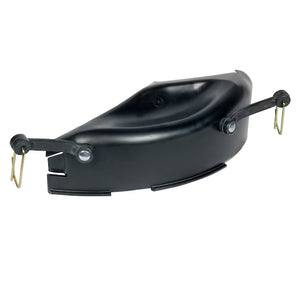

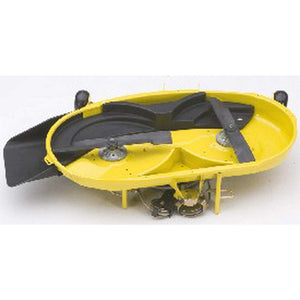

• Mulching System: Mulch cover or high-performance plug

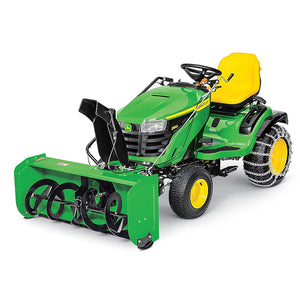

• Snow Blower: Two-stage, 44 in. (111.8 cm)
• Sprayer: Tow-behind, 15 U.S. gal. (56.8 L)

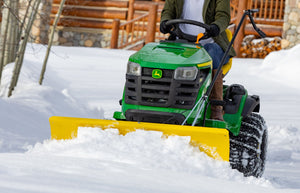

• Front Blade: 46 in. (116.8 cm)
• Weather Protection: Weather enclosure, Sun canopy

Safety & Compliance

• Meets ANSI Standard: Yes
• Meets OPEI Standard: Yes
• Backup Protection: Reverse Implement Option (RIO)
