Description:

Features:

• 22 hp (16.4 kW)* V-Twin Engine
• 48-in. Edge™ Mower Deck
• Electric PTO, Hydrostatic Transmission w/side-by-side pedals
• Operator station is wide and comfortable
• 15-in Open-Back seat and standard front bumper
• 2 year/120 hour bumper-to-bumper warranty

Specifications:

Engine

• Power: 22 hp / 16.4 kW
• Displacement: 724 cc / 44.2 cu in.
• Model: 44N677 (M44)
• Type: Overhead valve, V-twin, full-pressure lubrication with oil filter
• Cooling Method: Air
• Governor: Mechanical
• Choke/Speed Control: Single lever with spring-return on choke
• Air Cleaner: Cartridge
• Oil Change: No-tools oil drain with replaceable filter

Fuel System

• Fuel Type: Gasoline
• Fuel Delivery: Pulse pump and carburetor
• Fuel Tank Capacity: 2.4 U.S. gal / 9.1 L
• Fuel Tank Location: Rear
• Fuel Fill Opening: 1.75 in / 4.45 cm
• Fuel Gauge: Mechanical, viewable from seat

Electrical System

• Battery: 12V, 300 CCA
• Charging System: Regulated, 8 amp
• Starter: Bendix type
• Hour Meter: Yes
• Headlights: Two standard incandescent
• Rear Work/Backup Lights / 12V Outlet: No

Transaxle / Drive

• Type: Hydrostatic, TLT200, 2-wheel drive
• Control: Side-by-side pedals
• Differential Lock: No
• Oil Filter: Yes (not serviceable)
• Oil Cooler: Fins and fan on transaxle
• Forward Speed: 0–5.5 mph / 0–8.9 km/h
• Reverse Speed: 0–3.2 mph / 0–5.2 km/h
• Brakes: Internal wet disk

Chassis

• Frame: Full-length welded steel
• Paint: E-coat + powder coat
• Hitch: No rear receiver (weight bracket optional)
• Front Axle: Cast iron
• Front Tires: 15x6-6
• Rear Tires: 20x8-8
• Floor Mats: Yes (with debris-removing channels)
• Storage: Tray with optional cover
• Cup Holder: Yes
• Equipment Mounting: CargO Mount™ system
• Max Towing Capacity: 500 lb / 227 kg

Steering

• Type: Sector and pinion with single drag link & tie rod
• Steering Wheel: Standard, 12 in / 30.5 cm diameter
• Turning Radius: 18 in / 45.7 cm
• Uncut Circle Radius: 20 in / 50.8 cm
• Tilt Steering / 4WS: Not available

Seat

• Type: Two-piece, open back
• Seat Back Height: 15 in / 38 cm
• Armrests: No
• Adjustment: 5.5 in (while seated)
• Suspension: Tilt with two coil springs

Mower Deck

• Deck Type: Edge™ stamped steel
• Cutting Width: 48 in / 122 cm
• Deck Thickness: 12 gauge / 0.105 in / 2.7 mm
• Cut Height Range: 1–4 in / 2.5–10.2 cm (13 positions, 0.25 in steps)
• Lift System: Spring-assisted hand-grip lever
• Drive System: Single belt with electric PTO clutch
• Deck Wash Port: Yes
• Wheels: 4 (adjusted by one bolt)
• Leveling: Easy-level deck

Mower Attachability

• Mounting: Slide under tractor
• Front Draft Arms: 1 spring clip
• Rear Draft Arms: 2 spring clips
• Deck Wheel Rotation: No
• Meets ANSI/OPEI Standards: Yes
• Reverse Protection: Reverse Implement Option (RIO)

Dimensions

• Height: 44 in / 111.8 cm
• Overall Length: 69.7 in / 1770 mm
• Wheelbase: 48.9 in / 1242 mm
• Width with Mower: 60.8 in / 1544 mm
• Width (deflector up): 51.7 in / 1313 mm
• Width (no mower): 39.2 in / 996 mm
• Weight (w/ mower, no fuel): 468 lb / 212 kg

Optional Attachments

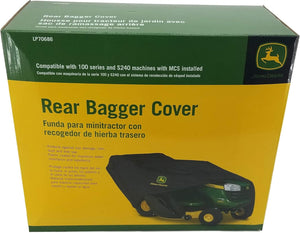

• Rear Bagger: 2-bag, 6.5 bu / 229 L
• Mulching System: Mulch cover
• Front Blade: 46 in / 116.8 cm
• Snow Blower: Two-stage, 44 in / 111.8 cm
• Sprayers:
• Tow-behind: 15 gal / 56.8 L
• Mounted: 15 gal
• Tow-behind (large): 25 gal / 94.6 L
• Spreader: Tow-behind, 125–175 lb / 57.7–80 kg
• Front Bumper: Included

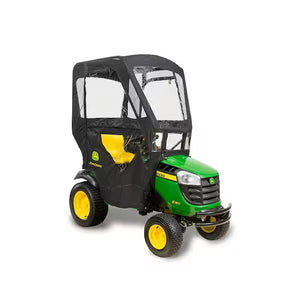

• Weather Enclosure / Sun Canopy: Available
• Bucket Holder: Yes (single)
• Lawn Striping Kit: Yes
• Tow-Behind Tools Supported: 16

Warranty

• Coverage: 2 years / 120 hours (bumper-to-bumper, whichever comes first)
