Description:

Features:

• 24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
• 54-in. Edge™ Mower Deck
• Easy Change™ 30-Second Oil Change System
• Adjustable lumbar seat and standard front bumper
• 2 year/120 hour bumper-to-bumper warranty

Specifications:

Engine

• Power: 24 hp (17.9 kW)
• Displacement: 44.2 cu in. (724 cc)
• Engine Model: 44U877 (M44) – V-twin, OHV, ELS
• Cooling: Air-cooled
• Oil Change: John Deere Easy Change™ 30-second system
• Fuel Type: Gasoline
• Fuel System: Pulse pump with carburetor
• Fuel Tank Capacity: 2.4 gal (9.1 L)
• Fuel Fill Opening: 1.75 in. (4.45 cm), center rear
• Fuel Gauge: On-dash, easy-read

Electrical

• Battery: 12 V, 300 CCA
• Charging System: 14 amp regulated
• Starter: Bendix type
• Headlights: 2 standard incandescent
• Hour Meter: Yes
• Rear Lights/Outlets: Reflectors only, no 12V outlet

Transmission & Drive

• Type: K46 Hydrostatic, 2WD
• Control: Side-by-side pedals
• Cruise Control: Standard
• Forward Speed: 0–5.5 mph (0–8.9 km/h)
• Reverse Speed: 0–3.2 mph (0–5.2 km/h)
• Brakes: Internal wet disc
• Oil Cooler: Yes (fins and fan on transaxle)
• Differential Lock: No

Chassis & Frame

• Frame: Full-length welded steel
• Paint: E-coat and powder coating
• Front Axle: Cast iron
• Front Tires: 16x6.5-8
• Rear Tires: 22x9.5-12
• Tow Capacity: 500 lb (227 kg)
• Receiver Hitch: Not included
• Weight Bracket: Optional
• Floor Mats: Yes, with debris channels
• Storage: Tray with cover
• Cup Holder: Yes
• Mounting System: CargO Mount™

Steering

• Type: Sector and pinion with tie rod
• Steering Wheel: Deluxe, 14 in. (35.6 cm)
• Turning Radius: 18 in. (45.7 cm)
• Four-Wheel Steer: Not available
• Tilt Steering: No

Seat & Comfort

• Type: One-piece with lumbar adjustment
• Seat Back Height: 15 in. (38 cm)
• Armrests: Not included
• Fore-Aft Adjustment: 5.5 in. (14 cm), while seated
• Suspension: Two coil springs

Mower Deck

• Type: Edge™ Side Discharge
• Cutting Width: 54 in. (137 cm)
• Deck Material: 11-gauge steel (0.120 in. / 3 mm)
• Height Range: 1–4 in. (2.5–10.2 cm)
• Height Settings: 13 positions, in 0.25 in. (0.64 cm) increments
• Deck Drive: Electric PTO clutch
• Wash Port: Yes
• Mower Wheels: 5, adjustable with one bolt
• Deck Attachment: Slide under tractor, 1 front + 2 rear clips
• Drive Belt: Single belt

Safety

• Standards: Meets ANSI and OPEI
• Backup Protection: Reverse Implement Option (RIO)
• Safety Video: Yes
• Notes: Molded-in color reduces sound, won’t rust or dent

Dimensions

• Length: 75.3 in. (191.3 cm)
• Height: 45.7 in. (116 cm)
• Wheelbase: 48.9 in. (124.2 cm)
• Width with Mower: 67 in. (170.2 cm)
• Width (deflector up): 51.7 in. (131.3 cm)
• Width without Mower: 39.2 in. (99.6 cm)
• Weight (no fuel): 526 lb (239 kg)

Attachments & Accessories

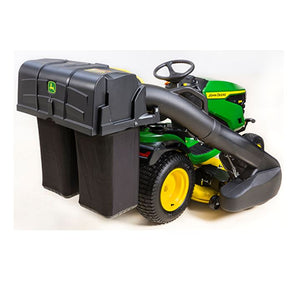

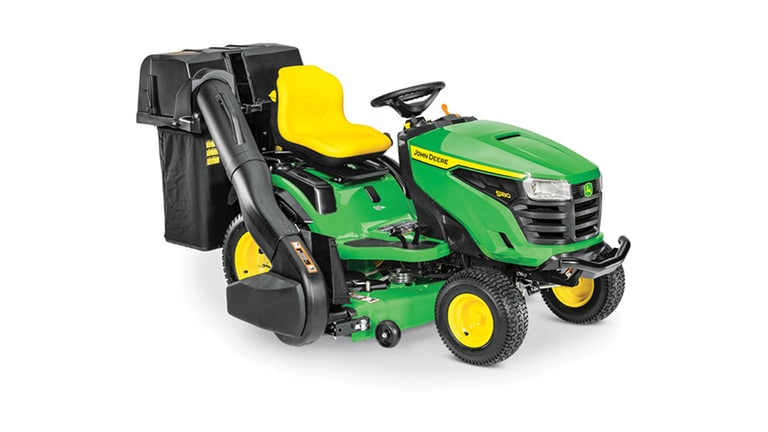

• Rear Bagger: 2-bag, 6.5 bu (229 L)
• Mulching: High-performance plug
• Power Flow™ Collection: Optional
• Front Blade: 46 in. (116.8 cm)
• Snow Blower: 44 in. (111.8 cm), 2-stage
• Sprayers:
• Tow-behind: 15 gal (56.8 L), 25 gal (94.6 L)
• Mounted: 15 gal (tow-behind only)
• Spreader: 125–175 lb (57.7–80 kg)
• Other:
• Front bumper (included)
• Weather enclosure
• Sun canopy
• Lawn striping kit
• Bucket holder
• Tow-behind tools: 16+

Warranty

• 2-Year / 120-Hour Bumper-to-Bumper
