Description:

Features:

• 21.5 HP* V-Twin Engine
• 42-in. (107-cm) Accel Deep™ Deck, compatible with optional Mulch Control™ kit
• Comfortable 15-in (38-cm) open back seat
• K46 heavy-duty hydrostatic transmission
• Easy read fuel gauge
• 3-year/200-hour bumper-to-bumper warranty.

Specifications:

• Engine Manufacturer/Model: FR651V
• Engine Power: 21.5 hp (16.0 kW)
• Displacement: 44.3 cu in. (726 cc)
• Type: Overhead valve, full-pressure lubrication, oil filter
• Cylinders: V-twin, cast-iron liners
• Governor: Mechanical
• Choke/Speed Control: Separate levers, automatic choke return
• Cooling Method: Air
• Air Cleaner: Dry, replaceable
• Oil Change: No-tools oil drain with replaceable filter
• Fuel System: Pulse pump and carburetor
• Fuel Tank Capacity: 2.4 U.S. gal. (9.1 L)
• Fuel Tank Location: Rear
• Fuel Gauge: Easy-read on dash
• Electrical System
• Battery: 12 V, 300 CCA
• Charging System: Flywheel alternator, regulated, 12 amp
• Engine Starter: Bendix type
• Hour Meter: Yes
• Headlights: Two standard, incandescent
• Taillights/Reflectors: Reflectors
• Backup Lights: No
• Rear Work Lights: No
• 12-V Outlet: No
• Transmission & Drive
• Transaxle Type: K46 heavy-duty hydrostatic, two-wheel drive
• Transaxle Control: Side-by-side pedals
• Cruise Control: Standard
• Oil Cooler: Fins and fan on transaxle
• Oil Filter: Internal, not replaceable
• Differential Lock: No
• Forward Speed: 0-5.5 mph (0-8.9 km/h)
• Reverse Speed: 0-3.2 mph (0-5.2 km/h)
• Brakes: Internal wet disk
• Mower Deck
• Lift System Type: Spring-assisted hand-grip lever
• Mower Deck Type: Accel Deep™ mower deck, 42 in. (107 cm)
• Mower Deck Material: 12 gauge (0.105 in. / 2.7 mm)
• Mower Deck Construction: Stamped steel deck shell
• Mower Wash Port: Yes, with hose end
• Mower Drive System: Electric power take-off (PTO) clutch
• Mower Wheels: Two
• Mower Wheel Adjustment: One bolt
• Mower Level Adjustment: Easy-level deck
• Mower Attachability: Slide under tractor
• Backup Protection: Reverse Implement Option (RIO)
• Chassis & Frame
• Frame Type: Full-length welded steel
• Primer/Paint: E-coat/powder
• Weight Bracket: Optional rear
• Receiver Hitch: No
• Front Axle: Cast iron front axle with front wheel sealed ball bearings
• Spindle Bushings: No
• Floor Mats: Yes, with debris removing channels
• Storage: Storage tray with cover
• Service Interval Decal: Yes
• Fender Handles/Grips: Handgrips
• Cup Holder: Yes
• Steering & Turning Radius
• Steering Type: Sector and pinion with single drag link and tie rod
• Four-Wheel Steer: Not available
• Steering Wheel: Deluxe, 14 in. (35.6 cm) diameter
• Tilt Steering Wheel: No
• Turning Radius: 18 in. (45.7 cm)
• Uncut Circle Radius (with 42A): 24 in. (61 cm)
• Seat Specifications
• Seat Type: Spring-assisted hand-grip lever
• Seat Back Height: 15 in. (38.1 cm)
• Armrests: No
• Fore-Aft Adjustment: 5.5 in. (14 cm)
• Seat Suspension: Tilt, two rubber isolators
• Cutting System
• Mower Cut Height: 13 positions, 1-4 in. (2.5-10.2 cm)
• Cut Height Increments: 0.25 in. (0.64 cm)
• Preset Cut Height: No
• Mower Deck Type: Side discharge
• Tires & Dimensions
• Front Tires: 15x6-6
• Rear Tires: 20x10-8
• Dimensions:
• Height: 45 in. (1143 mm)
• Overall Length: 75.1 in. (1908 mm)
• Wheelbase: 48.9 in. (1242 mm)
• Width with Mower: 50 in. (1270 mm)
• Width with Mower (Deflector Raised): 49 in. (1244 mm)
• Width without Mower: 39.4 in. (1000 mm)
• Weight: 486 lb (220 kg)
• Warranty
• Warranty: 3-year/200-hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model.)
• Optional Equipment
• Rear Bagger: 2-bag, 6.5 bu (229 L)
• Mulching System: Yes, MulchControl™
• Front Blade: 46 in. (116.8 cm)
• Snow Blower: Two-stage, 44 in. (111.8 cm)
• Sprayer: Tow-behind, 15 U.S. gal. (56.8 L) or 25 U.S. gal. (94.6 L)
• Spreader: Tow-behind, 125 lb (57.7 kg) or 175 lb (79.4 kg)
• Front Bumper: Included
• Weather Protection: Weather enclosure

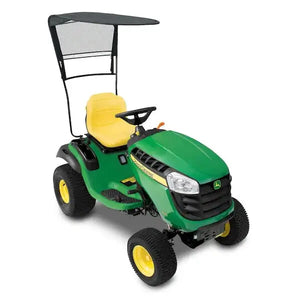

• Sun Canopy: Yes
• Bucket Holder: Yes, single bucket
• Grass Striping: Lawn striping kit
• Tow-behind Tools: 16
