Description:

Features:

• 21.5 HP* V-Twin Engine

• 48-in. (122-cm) Accel Deep™ Deck, compatible with optional MulchControl™ kit

• Comfortable 15-in (38-cm) open back seat

• K46 heavy-duty hydrostatic transmission

• Easy read fuel gauge

• 3-year/200-hour bumper-to-bumper warranty

Specifications:

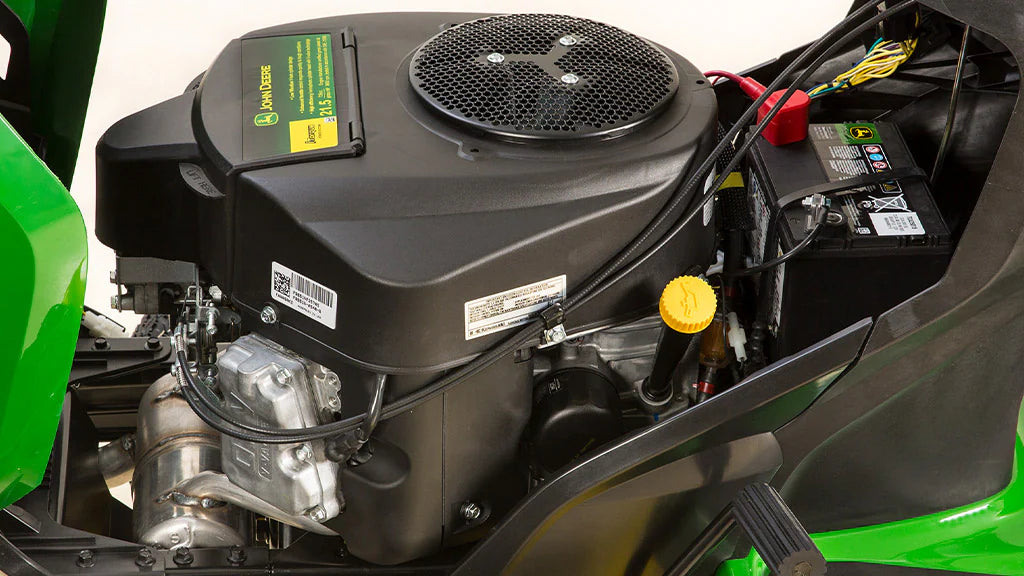

Engine

• Model: Kawasaki FR651V
• Power: 21.5 hp (16.0 kW)
• Displacement: 726 cc (44.3 cu in.)
• Cylinders: V-twin, cast-iron liners
• Cooling: Air
• Fuel Type: Gasoline
• Fuel Capacity: 2.4 gal (9.1 L)
• Oil Change: No-tools drain, replaceable filter
• Air Cleaner: Dry, replaceable
• Fuel Delivery: Pulse pump and carburetor
• Governor: Mechanical
• Choke/Throttle: Separate levers, auto choke return

Electrical

• Battery: 12V, 300 CCA
• Charging System: 12 amp regulated
• Hour Meter: Yes
• Starter Type: Bendix
• Lights: 2 front incandescent, rear reflectors

Transmission

• Type: K46 heavy-duty hydrostatic (2WD)
• Control: Side-by-side pedals
• Forward Speed: 0–5.5 mph (0–8.9 km/h)
• Reverse Speed: 0–3.2 mph (0–5.2 km/h)
• Oil Cooler: Fins and fan
• Brakes: Internal wet disk
• Cruise Control: Standard
• Differential Lock: No

Chassis

• Frame: Full-length welded steel
• Front Axle: Cast iron
• Front Tires: 15x6-6
• Rear Tires: 20x10-8
• Floor Mats: Yes
• Tow Capacity: 500 lb (227 kg)
• Storage Tray: With cover
• Cup Holder: Yes
• Mounting System: CargO Mount™

Steering

• Type: Sector and pinion
• Turning Radius: 18 in. (45.7 cm)
• Steering Wheel: 14 in. deluxe (non-tilt)

Seat

• Back Height: 15 in. (38.1 cm)
• Adjustment: 5.5 in. fore-aft, while seated
• Suspension: Tilt, rubber isolators
• Armrests: No

Mower Deck

• Type: Accel Deep™, side discharge
• Cutting Width: 48 in. (122 cm)
• Material: 10-gauge steel (0.135 in / 3.4 mm)
• Cutting Height: 1–4 in. (2.5–10.2 cm), 13 positions
• Height Increments: 0.25 in. (0.64 cm)
• Lift System: Spring-assisted lever
• Deck Wash Port: Yes
• Drive: Electric PTO clutch
• Mower Wheels: 4

Safety

• Backup Protection: Reverse Implement Option (RIO)
• Standards Met: ANSI, OPEI
• Video: Safety video included

Optional Equipment

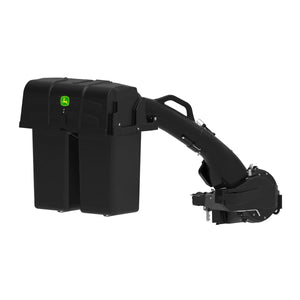

• Bagger: 6.5 bu (2-bag)
• Mulching: MulchControl™
• Front Blade: 46 in.
• Snow Blower: 44 in. (2-stage)
• Sprayers: 15 gal & 25 gal tow-behind
• Spreaders: 125 lb & 175 lb tow-behind
• Weather Protection: Enclosure, sun canopy
• Bucket Holder: Single
• Tow-behind Tools: Up to 16 tools

Dimensions

• Height: 45 in. (1143 mm)
• Length: 75.1 in. (1908 mm)
• Wheelbase: 48.9 in. (1242 mm)
• Width (with deck): 63 in. (1600 mm)
• Width (deck raised): 54 in. (1372 mm)
• Width (no deck): 39.4 in. (1000 mm)
• Weight: 522 lb (237 kg)

Warranty

• Coverage: 3 years / 200 hours (bumper-to-bumper, whichever comes first)
