Description:

Features:

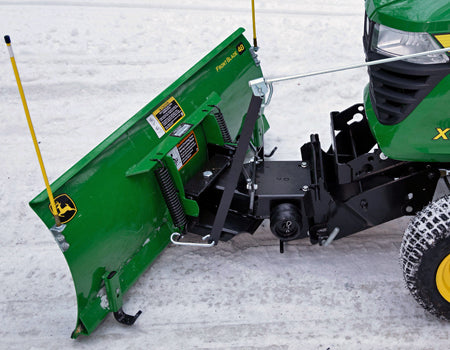

• Wide 48-inch front blade completely clears material from the path of the tractor for efficient clearing
• 5-position blade angling provides several clearing options
• Optional blade angling kit allows you to position blade from seat
• Coil-spring breakaway feature reduces blade damage when solid objects are struck

Specifications:

• Cutting Width
• Blade Straight: 48 in. / 122 cm
• Blade Angled (15°): 47 in. / 119 cm
• Blade Angled (30°): 42 in. / 107 cm
• Angling Positions
• Number of Positions: 5
• Angle Options (Right & Left):
• 15 degrees
• 30 degrees
• Dimensions
• Overall Height: 17 in. / 43 cm
• Overall Length (Installed):
• Standard: 86 in. / 218 cm
• With Quick-Tatch weights: 90.5 in. / 223 cm
• Range of Lift (on Garden Tractors)
• Above Ground Level: 5 in. / 13 cm
• Below Ground Line: 3 in. / 7.6 cm
• Blade & Components
• Blade Skid Shoes: 8-position type
• Blade Thickness: 0.12 in. / 3.05 mm
• Scraper Edge (Replaceable): 0.188 in. / 4.76 mm
• Blade Trip: Spring-trip with lock
• Blade Float: Built into tractor linkage
• Weight
• Blade Only (No Angling Kit): 110 lb / 50 kg
• Manual Angling Kit: 8 lb / 4 kg

Assembly, Installation and additional components required. Please call for more information
