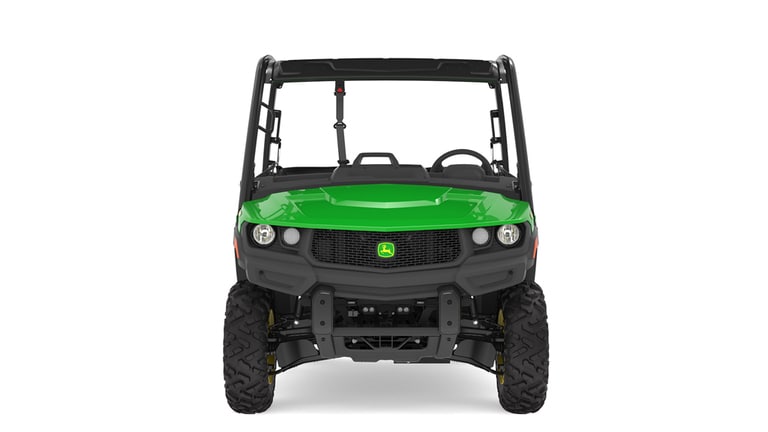

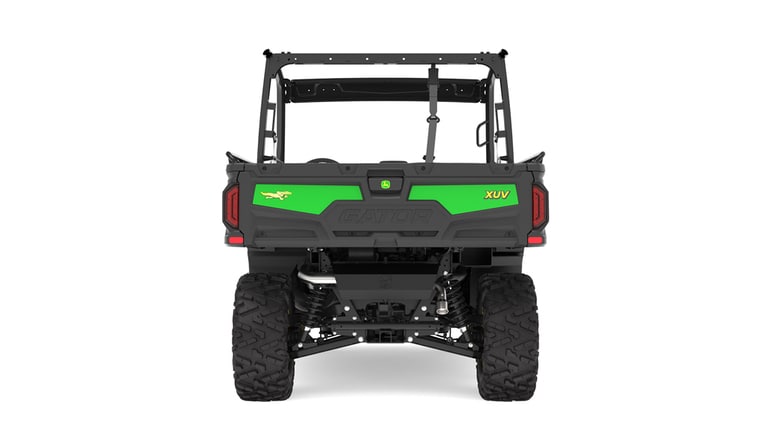

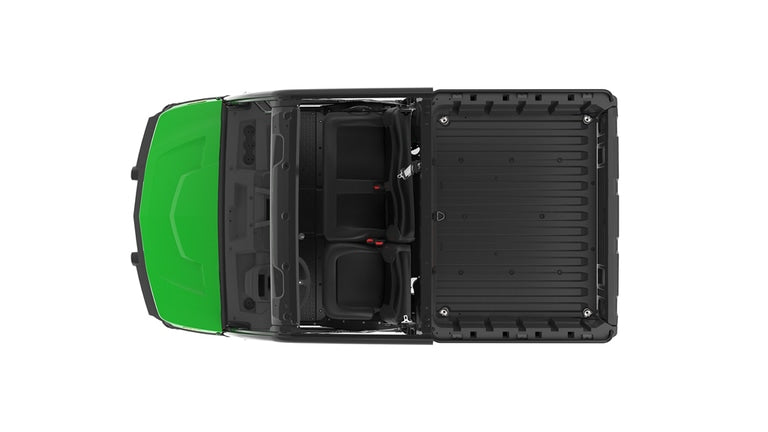

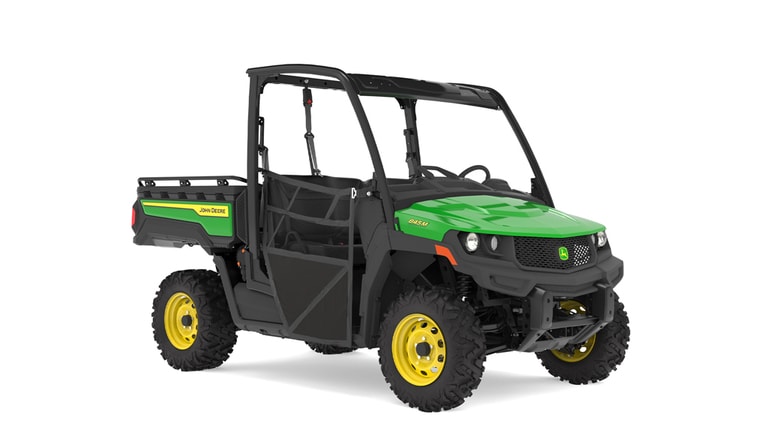

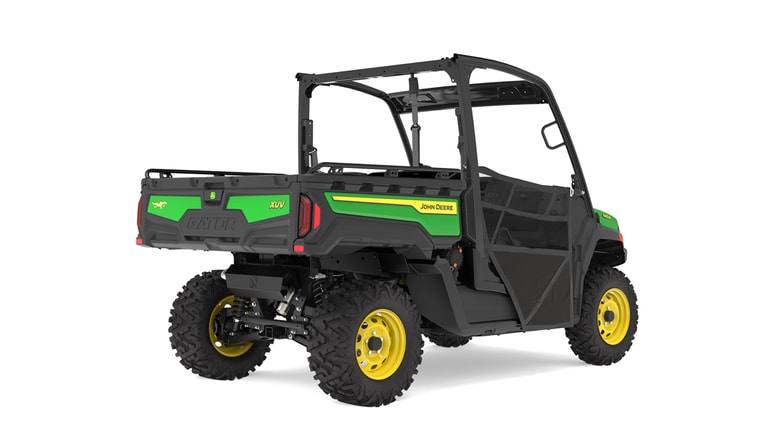

John Deere XUV 845M Crossover Utility Vehicle

Call For Price

Vendor : John Deere

Product Type : Gator Utility Vehicles

Sku : John Deere XUV 845M Crossover Utility Vehicle-XUV845M

Description:

Features:

  • Power steering
  • Class-leading cargo box volume*
  • Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires, steel wheels**
  • Up to 4.000-lb. (1814 kg) towing capacity

Specifications:

  • Engine Power: 39.5 kW (53 hp)
  • Engine Type: 4-cycle gas, electronic fuel injection (EFI)
  • Displacement: 812 cc
  • Cooling System: Liquid
  • Transmission: Continuously Variable Transmission (CVT) with clutch enclosure
  • Final Drive: Park, high, low, neutral, reverse transaxle
  • Four-Wheel Drive: Dash switch actuated
  • Traction Assist: Limited slip front differential, positive locking, switch actuated rear differential lock
  • Descent Control: Yes
  • Front Suspension: Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
  • Rear Suspension: Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
  • Front Brakes: Hydraulic disc with twin piston front calipers
  • Rear Brakes: Hydraulic disc
  • Park Brake: Park in-transmission; optional secondary foot-operated with hand release
  • Front Tires:
  • 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels
  • 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels
  • Rear Tires:
  • 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
  • 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels
  • Wheelbase: 2211 mm (87 in.)
  • Ground Clearance (Unloaded): 305 mm (12 in.)
  • Length: 3250 mm (128 in.)
  • Width: 1625 mm (64.0 in.)
  • Height: 1980 mm (78.0 in.); With roof: 2030 mm (79.9 in.)
  • Tread Centers (Front): 1376 mm (54.2 in.); (Rear): 1300 mm (51.2 in.)
  • Weight (With fuel and fluids): 931 kg (2052 lb)
  • Fuel Capacity: 42.4 L (11.2 U.S. gal.)
  • Cargo Box Dimensions: 1099 x 343 x 1392 mm (43.3 x 13.5 x 54.8 in.)
  • Cargo Box Volume: 524 L (18.5 cu ft)
  • Cargo Box Capacity (Weight): 454 kg (1000 lb)
  • Payload Capacity: 611 kg (1347 lb)
  • Towing Capacity: Up to 1814 kg (4000 lb)
  • Hitch: Standard receiver: 5.1 cm (2 in.)
  • Color Options: Green and yellow, TrueTimber® KANATI® camo, olive and black
  • Power Steering: Yes
  • Battery: 12 V 480 CCA
  • Alternator: 85 amp
  • Power Ports: DC outlet 12 V; Cargo box power port 12 V
