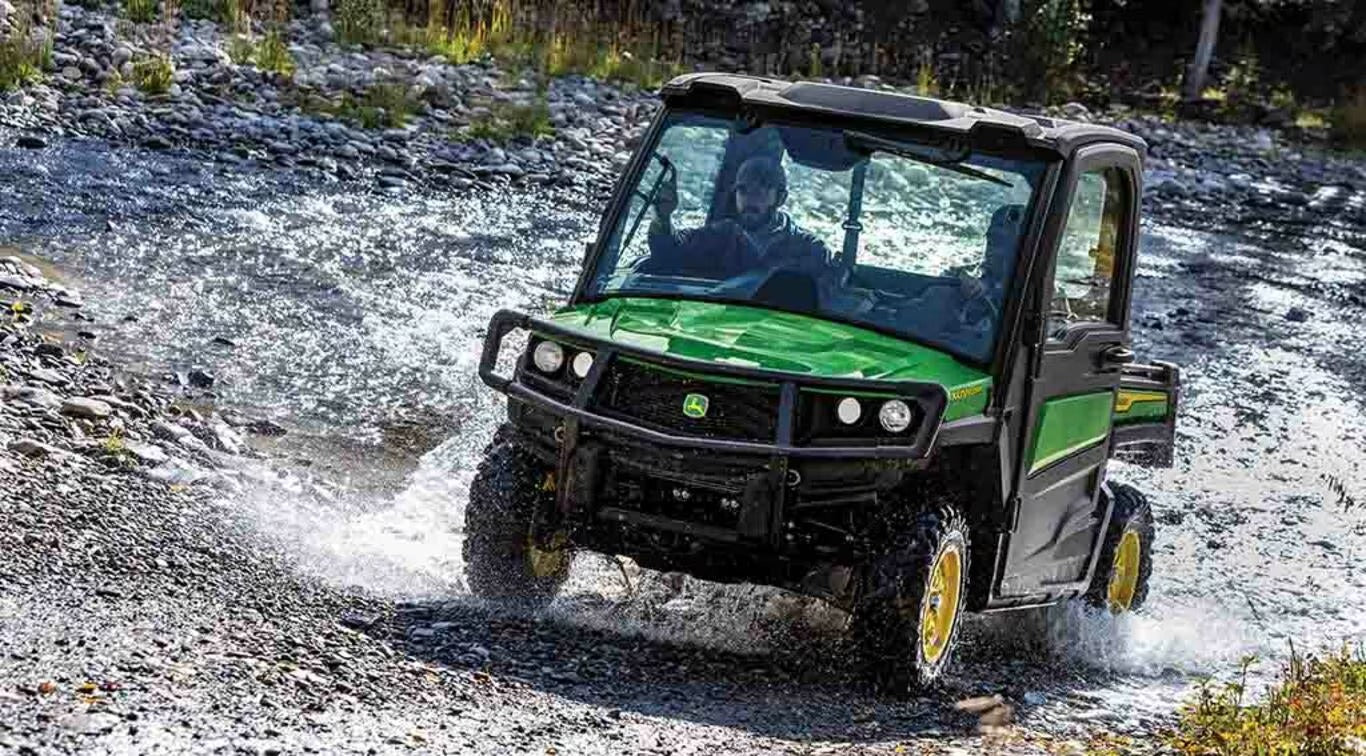

John Deere XUV835M HVAC Cab Crossover Utility Vehicle

Call For Price

Vendor : John Deere

Product Type : Utility Vehicle

Sku : John Deere XUV835M HVAC Cab Crossover Utility Vehicle-835M HVAC

Sorry! Our John Deere XUV835M HVAC Cab Crossover Utility Vehicle is currently sold out.

Want to be notified when it becomes available again? Simply register your interest and we'll send you a message when it does.

Description:

  • Climate-controlled cab with heat and air conditioning
  • Smooth, power steering
  • Cargo box with spray-in liner, brake and taillights
  • Up to 4,000-lb towing capacity

Specifications:

  • Engine:
  • Engine Type: 4-cycle gas, electronic fuel injection (EFI)
  • Displacement: 812 cc
  • Power: 40.3 kW (54 hp)
  • Cooling System: Liquid
  • Fuel Capacity: 42.4 L (11.2 U.S. gal.)
  • Drivetrain and Suspension:
  • Transmission: Continuously Variable Transmission (CVT) with clutch enclosure
  • Final Drive: Park, high, low, neutral, reverse transaxle
  • Four-Wheel Drive: Dash switch actuated
  • Traction Assist: Limited slip front differential, Positive locking, switch actuated rear differential lock
  • Descent Control: Yes
  • Suspension:
  • Front: Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
  • Rear: Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
  • Brakes:
  • Type: Front/rear hydraulic disc with twin-piston front calipers
  • Park Brake: Park in-transmission, optional secondary foot-operated brake with hand release
  • Tires / Wheels:
  • Tires:
  • Front: 27x9-R14 Maxxis ® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels
  • Rear: 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
  • Wheelbase: 2146 mm (84.5 in.)
  • Ground Clearance: 284 mm (11.2 in.)
  • Dimensions / Capacities:
  • Length: 3228 mm (127 in.)
  • Width: 1763 mm (69.4 in.)
  • Height: 1987 mm (78.2 in.)
  • Tread Centers:
  • Front: 1341 mm (52.8 in.)
  • Rear: 1259 mm (49.6 in.)
  • Cargo Box Dimensions: 1143 x 305 x 1320 mm (45 x 12 x 52 in.)
  • Cargo Box Capacity (Weight): 454 kg (1000 lb)
  • Payload Capacity: 523 kg (1153 lb)
  • Towing Capacity: Up to 1814 kg (4000 lb)
  • Hitch: Standard receiver: 5.1 cm (2 in.)
  • Storage:
  • Total Storage Capacity: 69.5 L (18.4 gal.)
  • Storage Breakdown:
  • Six cup holders: 4.6 L (1.2 gal.)
  • Center tray: 1.2 L (0.3 gal.)
  • Two dash bins: 3.3 L (0.9 gal.)
  • Storage pocket: 1.4 L (0.4 gal.)
  • Glove box: 3.8 L (1.0 gal.)
  • Under seat: 55.3 L (14.6 gal.)
  • Seating:
  • Seating Configuration: Black vinyl 40/60 split three-passenger bench
  • Power and Electrical:
  • Battery: 12 V, 480 CCA
  • Alternator: 85 amp
  • Power Port: 12 V DC outlet
  • Instrumentation:
  • Display: Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
  • Other Features:
  • Color Options: Green and yellow, True Timber® KANATI® camo, olive, and black
  • Power Steering: Yes
