Description:

Features:

• Mow up to 2 acres
• 21.5 HP* (16 kW) V-Twin engine
• 42-in. (107 cm) Accel Deep™ Mower Deck
• 20-inch (50.8 cm) high-back custom-tailored seat and standard rear hitch
• 3-year/200-hour bumper-to-bumper warranty

Specifications:

• Engine Power: 21.5 hp (16.0 kW)
• Engine Model Number: FR651V
• Engine Displacement: 44.3 cu in (726 cc)
• Cylinders: V-twin
• Lubrication: Full pressure with replaceable filter (capacity: 2.2 U.S. qt / 2.1 L)
• Fuel Tank Capacity: 3.0 U.S. gal (11.4 L)
• Battery: 12 V, 300 CCA
• Cooling Method: Air
• Fuel Gauge: Translucent tank
• Choke/Speed Control: Separate levers
• Drive Train: Dual hydros Hydro-Gear EZT-C with 1-inch (2.5 cm) axles
• Warranty: 3 years or 200 hours bumper-to-bumper (terms vary by model)

Dimensions

• Wheelbase: 49.4 in (1255 mm)
• Overall Length: 75.4 in (1915 mm)
• Width Without Mower: 43.3 in (1100 mm)
• Width with Mower: 50.4 in (1280 mm)
• Width with Mower (Deflector Raised for Storage): 46.5 in (1180 mm)
• Height: 43.3 in (1100 mm)
• Weight: 561 lb (255 kg)

Performance

• Forward Speed: 0-7 mph (0-11.3 km/h)
• Reverse Speed: 0-3.5 mph (0-5.6 km/h)
• Speed and Direction Control: Twin levers (3 height, 11 positions)

Mower Deck

• Width of Cut: 42 in (107 cm) Accel Deep™ mower deck
• Mower Deck Type: Side discharge
• Mower Deck Material: 12-gauge steel (0.105 in / 2.7 mm)
• Mower Drive System: V-belt
• Cut Height Range: 1.25-4.5 in (3-11 cm) with increments of 0.25 in (0.64 cm)

Tires

• Front Caster Tires: 11x6-5
• Drive Tires: 18x8.5-8
• Front Caster Bearings: Sealed ball bearings

Seat and Comfort

• Seat Back Height: High back with optional armrests (20 in / 51 cm)
• Fore-Aft Seat Adjustment: 2.9 in (7 cm)
• Seat Suspension: Two springs

Additional Features

• Height Adjustment: Foot lift with cutting height dial
• Storage Compartment: Optional covered
• Cup Holder: Yes
• Maximum Towing Capacity: 250 lb (113 kg)
• Hour Meter: Yes
• Service Interval Decal: Yes
• Operator Presence System: Yes
• Park Brake Interlock: Yes

Optional Attachments and Accessories

• Mulching System: Optional Mulch Control™ attachment
• Rubber Floor Mat: Optional
• Sun Shade: Optional
• Protective Cover: Optional
• Light Kit: Optional

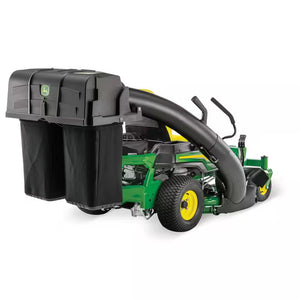

• Material Collection System: Two-bag cut-and-throw MCS, 6.5 bu (229 L)

Engine and Drive

• Engine Type: Overhead valve (OHV)
• Primer/Paint: E-coat/powder
• Rollover Protective Structure (ROPS): No
• Slope Operating Limit: 13 degrees (10 degrees with Material Collection System)
• PTO: Electric (105 lb-ft / 142 Nm)

Frame and Construction

• Frame Material: Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front tubing, 1.5-in. x 2-in. (4-cm x 5-cm) side tubing

Warranty

• Duration: 3 years or 200 hours bumper-to-bumper (terms limited by time or usage, whichever comes first)
• Warranty Details: See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT.
