Description:

Features:

• Mow up to 2 acres
• 23 HP* (17 kW) V-Twin engine
• 20-inch (50.8 cm) high-back custom-tailored seat and standard rear hitch
• 3-year/200-hour bumper-to-bumper warranty

Specifications:

• Engine Power: 23 hp (17.2 kW)
• Engine Model: FR691V
• Displacement: 44.3 cu in (726 cc)
• Cylinders: V-twin
• Lubrication: Full pressure with replaceable filter, 2.2 U.S. qt (2.1 L)
• Engine Type: Overhead valve
• Battery: 12 V, 300 CCA
• Choke/Speed Control: Separate levers
• Cooling Method: Air
• Fuel Tank Capacity: 3.0 U.S. gal (11.4 L)
• Fuel Gauge: Translucent tank

Drive Train

• Dual Hydros: Hydro-Gear EZT-D with 1-in. (2.5-cm) axles
• Forward Speed: 0-7 mph (0-11.3 km/h)
• Reverse Speed: 0-3.5 mph (0-5.6 km/h)
• Speed and Direction Control: Twin levers
• Control Adjustment: 3 height, 11 positions

Chassis

• Frame: Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
• Primer/Paint: E-coat/powder
• Front Caster Tires: 11x6.5
• Front Caster Bearings: Sealed ball bearings
• Drive Tires: 20x10-8
• Hour Meter: Yes
• Service Interval Decal: Yes
• Storage Compartment: Optional covered
• Cup Holder: Yes
• Maximum Towing Capacity: 250 lb (113 kg)

Seat

• Seat Back Height: High back with optional armrests, 20 in. (51 cm)
• Fore-Aft Adjustment: 2.9 in. (7 cm)
• Seat Suspension: Two springs

Mower Deck

• Width of Cut:
• Accel Deep™ mower deck, 48 in. (122 cm)
• Accel Deep™ mower deck, 54 in. (137 cm)
• Cut Height Range: 1.25-4.5 in. (3-11 cm)
• Cut Height Increments: 0.25 in. (0.64 cm)
• Preset Cut Height: Yes
• Mower Deck Material: 10 gauge (0.135 in., 3.4 mm)
• Mower Drive System: V-belt
• Mower Deck Type: Side discharge
• Mower Deck PTO: Electric, 105 lb-ft (142 Nm)

Dimensions

• Wheelbase: 49.4 in. (1255 mm)
• Overall Length: 75.4 in. (1915 mm)
• Width Without Mower: 43.3 in. (1100 mm)
• Width with Mower:
• 48A: 62.6 in. (1590 mm)
• 54A: 68.5 in. (1740 mm)
• Width with Mower (Deflector Raised for Storage):
• 48A: 52.8 in. (1340 mm)
• 54A: 57.1 in. (1450 mm)
• Height: 44.2 in. (1123 mm)
• Weight:
• 48A: 598 lb (272 kg)
• 54A: 609 lb (277 kg)

Additional Features

• Rollover Protective Structure (ROPS): No
• Slope Operating Limit: 13 degrees; 10 degrees with Material Collection System
• Operator Presence System: Yes
• Park Brake Interlock: Yes
• Warranty: 3 years or 200 hours bumper-to-bumper (terms limited to years or hours used, whichever comes first)

Optional Attachments

• Mulching System: Optional MulchControl™ attachment
• Rubber Floor Mat: Optional
• Sun Shade: Optional
• Protective Cover: Optional
• Light Kit: Optional

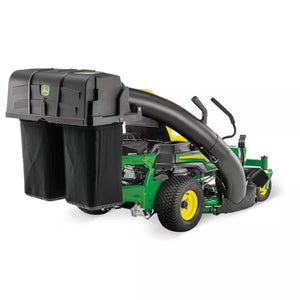

• Material Collection System: Two-bag Power Flow MCS, 6.5 bu (229 L)
