Description:

Features:

• Mow up to 2 acres
• 23 HP* (17 kW) V-Twin engine
• 20-inch (50.8 cm) high-back custom-tailored seat with arm rests
• LED lights, floor mat, front bumper, rear hitch, covered storage come standard
• 3-year/200-hour bumper-to-bumper warranty

Specifications

• Power:
• 23 hp (17.2 kW)
• Engine Model:
• FR691V
• Displacement:
• 44.3 cu in (726 cc)
• Cylinders:
• V-twin
• Lubrication:
• Full pressure with replaceable filter (capacity: 2.2 U.S. qt or 2.1 L)
• Choke/Speed Control:
• Separate levers
• Cooling Method:
• Air-cooled
• Fuel Tank Capacity:
• 3.0 U.S. gal (11.4 L)
• Battery:
• 12 V, 300 CCA
• Fuel Gauge:
• Translucent tank
• Transmission & Drive
• Drive Train:
• Dual hydrostatic: Hydro-Gear EZT-D with 1-in. (2.5 cm) axles
• Forward Speed:
• 0-7 mph (0-11.3 km/h)
• Reverse Speed:
• 0-3.5 mph (0-5.6 km/h)
• Speed and Direction Control:
• Twin levers
• Control Adjustment:
• 3 height, 11 positions
• Mower Drive System:
• V-belt
• Mower Deck Drive:
• V-belt
• PTO:
• Electric, 105 lb-ft (142 Nm)
• Chassis & Dimensions
• Frame:
• Heavy-duty 2.5-in. x 2-in. (6 cm x 5 cm) front, and 1.5-in. x 2-in. (4 cm x 5 cm) side tubing
• Front Caster Tires:
• 11x6-5
• Drive Tires:
• 20x10-8
• Wheelbase:
• 49.4 in (1255 mm)
• Overall Length:
• 75.4 in (1915 mm)
• Width without Mower:
• 43.3 in (1100 mm)
• Width with Mower:
• 48A: 62.6 in (1590 mm)
• 54A: 68.5 in (1740 mm)
• Width with Mower (Deflector Raised for Storage):
• 48A: 52.8 in (1340 mm)
• 54A: 57.1 in (1450 mm)
• Height:
• 44.2 in (1123 mm)
• Weight:
• 48A: 611 lb (278 kg)
• 54A: 623 lb (283 kg)
• Mower Deck
• Width of Cut:
• Accel Deep™ mower deck, 48 in. (122 cm)
• Accel Deep™ mower deck, 54 in. (137 cm)
• Type:
• Side discharge
• Mower Deck Material:
• 10-gauge steel (0.135 in. or 3.4 mm)
• Mower Deck Design:
• Durable Accel Deep Mower Decks with double captured mower wheels
• Cutting Height:
• 1.25 - 4.5 in (3 - 11 cm)
• Height Adjustments:
• 0.25 in (0.64 cm) increments
• Preset cut height available
• Lift System:
• Foot lift
• Seat & Comfort Features
• Seat Back Height:
• High back with armrests (20 in / 51 cm)
• Seat Fore-Aft Adjustment:
• 2.9 in (7 cm)
• Seat Suspension:
• Two springs
• Storage Compartment:
• Standard covered
• Cup Holder:
• Yes
• Additional Features
• Warranty:
• 3 years or 200 hours bumper-to-bumper (*whichever comes first)
• Operator Presence System:
• Yes
• Park Brake Interlock:
• Yes
• Rollover Protective Structure (ROPS):
• No
• Slope Operating Limit:
• 13 degrees; 10 degrees with Material Collection System
• Cruise Control:
• No
• Rubber Floor Mat:
• Standard
• Light Kit:
• Standard

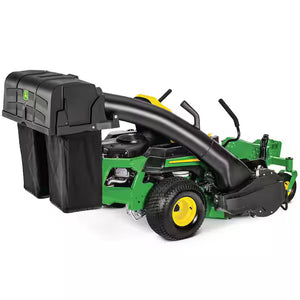

• Material Collection System (Optional):
• Two-bag Power Flow MCS, 6.5 bu (229 L)
• Mulching System:
• Optional MulchControl™ attachment
• Miscellaneous
• Maximum Towing Capacity:
• 250 lb (113 kg)
