Description:

• 24 hp* (17.9 kW) V-Twin engine
• 20-in. cut and sewn seat with Comfort Glide™ suspension
• 4-year/300-hour bumper-to-bumper warranty.

Specifications:

• Engine Type: V-twin, Overhead Valve (OHV)
• Engine Model Number: FR730V
• Power: 24 hp (17.9 kW)
• Displacement: 44.3 cu in. (726 cc)
• Lubrication: Full pressure with replaceable filter (capacity: 2 U.S. qt / 1.9 L)
• Cooling Method: Air-cooled
• Fuel Tank Capacity: 4.5 U.S. gal. (17 L)
• Fuel Gauge: Electric gauge and fuel level sight line
• Battery: 12 V, 300 CCA
• Choke/Speed Control: Separate control levers
• Drive Train & Transmission:
• Transmission Type: Dual hydros, Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
• Forward Speed: 0-8 mph (0-12.9 km/h)
• Reverse Speed: 0-4 mph (0-6.4 km/h)
• Speed and Direction Control: Twin premium levers
• Travel Speed Adjustment: 2-height/9-fore-aft, 18 positions
• Mower Deck:
• Deck Type: Accel Deep™ mower deck
• Deck Widths:
• 48 in. (122 cm)
• 54 in. (137 cm)
• 60 in. (152 cm)
• Deck Material: 10 gauge steel (0.135 in. / 3.4 mm)
• Deck Drive System: V-belt

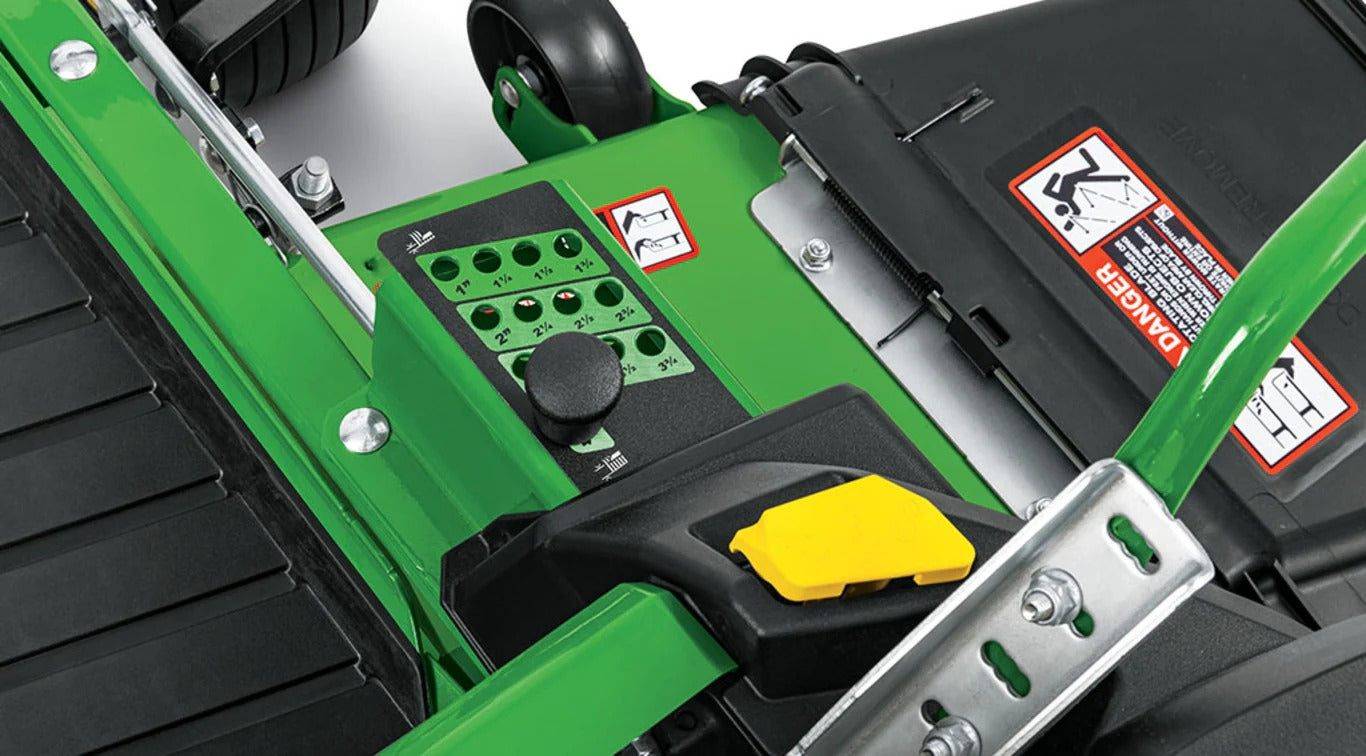

• Lift System: Foot lift with preset cut height (1-4 in. / 2.5-10.2 cm)
• Cut Height Increments: 0.25 in. (0.64 cm)
• Mulching System: Optional MulchControl™ attachment (available for 48, 54, and 60-inch decks)
• Mower Wash Port: Yes (for easy deck cleaning)
• Dimensions:
• Wheelbase: 49.2 in. (1250 mm)
• Overall Length: 76.9 in. (1953 mm)
• Width Without Mower: 46.6 in. (1184 mm)
• Width With Mower:
• 48A: 62.8 in. (1595 mm)
• 54A: 68.6 in. (1742 mm)
• 60A: 73.4 in. (1864 mm)
• Width With Mower (Deflector Raised for Storage):
• 48A: 53.9 in. (1370 mm)
• 54A: 59.7 in. (1517 mm)
• 60A: 65.6 in. (1667 mm)
• Height (ROPS):
• In folded position: 48.6 in. (1235 mm)
• In raised position: 71.1 in. (1806 mm)
• Weight (with mower and fuel):
• 48A: 772 lb (351 kg)
• 54A: 780 lb (355 kg)
• 60A: 788 lb (358 kg)
• Seating:

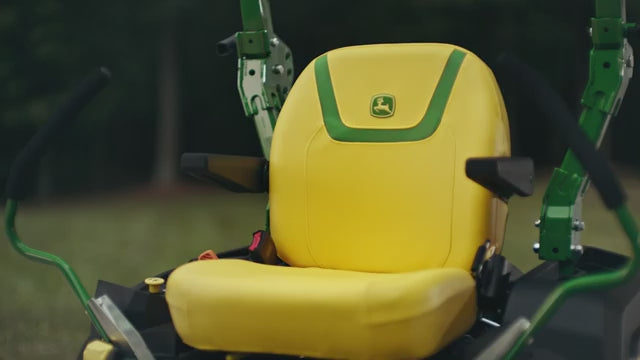

• Seat Back Height: High back with armrests and ComfortGlide™ (20 in. / 50.8 cm)
• Fore-aft Seat Adjustment: 3 in. (7.6 cm)
• Seat Suspension: Two springs with ComfortGlide™
• Chassis & Operation Features:
• Frame Type: Heavy-duty frame tubing
• Front Caster Tires: 13x6.5-6
• Drive Tires: 22x9.5-10
• Caster Bearings: Sealed ball bearings
• Hour Meter: Yes
• Service Interval Decal: Yes
• Storage Compartment: Yes
• Cup Holder: Yes
• Maximum Towing Capacity: 250 lb (113 kg)
• Rollover Protective Structure (ROPS):
• ROPS Type: Yes, foldable
• Slope Operating Limit:
• 15 degrees
• 10 degrees with a Material Collection System (MCS)
• Operator Presence & Safety:
• Operator Presence System: Yes
• Park Brake Interlock: Yes
• Operator Video: Yes
• Additional Features:
• Adjustable Motion-Control Levers: 18-position adjustable levers for easy control
• Foot Platform: Flip-up design for easy service access
• Optional Features:
• Light Kit: Optional 4-point LED light kit
• Rubber Floor Mat: Available for foot platform only
• Sun Shade: Optional
• Material Collection System: Power Flow rear bagger, 6.5 bu (230 L) (Not available on 60A)
• Mounted Sprayer & Protective Cover: Not available
• Warranty:
• Bumper-to-Bumper Warranty: 4 years or 300 hours (whichever comes first)
