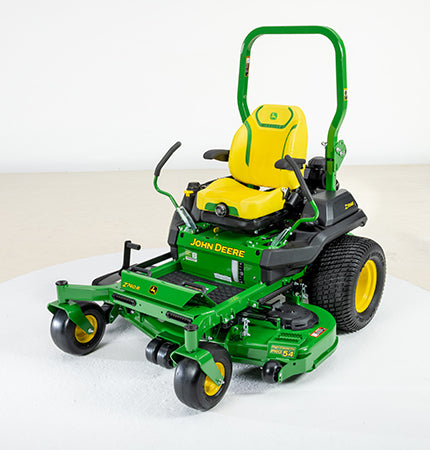

Description:

Features:

• 24-hp (17.9 kW)* FS series engine
• 54- or 60-in. High-capacity PRO mower deck with welded deck reinforcements
• 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
• Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches

Specifications:

ENGINE

• Engine Power: 24 hp (17.9 kW)
• Engine Model Number: FS730V
• Displacement: 44.3 cu in. (726 cc)
• Cylinders: V-twin
• Lubrication: Full pressure with replaceable filter (2 U.S. qt / 1.9 L)
• Type: Overhead valve
• Battery: 12 V, 340 CCA
• Choke/Speed Control: Separate control levers
• Cooling Method: Air
• Fuel Tank Capacity: 8 U.S. gal (30.2 L)
• Fuel Gauge: Fuel level sight line

DRIVE TRAIN

• Transmission: Hydro-gear ZT3200 with 1-in. axles
• Forward Speed: 0-9.5 mph (0-15.3 km/h)
• Reverse Speed: 0-4 mph (0-6.4 km/h)
• Speed/Direction Control: Twin premium levers
• Control Adjustment: 2-height/18 positions

CHASSIS

• Frame: Heavy-duty frame tubing
• Paint: E-coat/powder
• Front Caster Tires: 13x6.5-6
• Front Caster Bearings: Sealed ball bearings
• Drive Tires: 23X10.5-12
• Hour Meter: Yes
• Service Interval Decal: Yes
• Storage Compartment: Yes
• Cup Holder: Yes

SEAT

• Seat Back Height: 22.5 in. (57.1 cm), High back with adjustable armrests
• Fore-Aft Adjustment: +/- 2 in. (5.08 cm) while seated
• Seat Suspension: ComfortGlide™ fore/aft suspension, two four-position springs

LIFT SYSTEM

• Lift Type: Spring assisted foot lift
• Mower Cut Height: 1.5-5 in. (3.8-12.7 cm)
• Cut Height Increments: 0.25 in. (0.64 cm)
• Preset Cut Height: Yes

MOWER DECK (60-inch)

• Width of Cut: 60 in. (152 cm)
• Deck Type: High-capacity (HC) PRO side discharge
• Deck Material: 9 gauge (0.150 in. / 3.8 mm)
• Mower Drive System: V-belt

PTO

• Type: Electric, 125 lb-ft (169 Nm)
• PTO Drive: V-belt

DIMENSIONS (60-inch model)

• Wheelbase: 49.9 in. (126.7 cm)
• Overall Length: 82 in. (208.4 cm)
• Width without Mower: 50.6 in. (128.4 cm)
• Width with Mower: 73.3 in. (186.1 cm)
• Width with Mower (Deflector Raised): 64.8 in. (164.5 cm)
• Height (ROPS Up): 71.1 in. (182.2 cm)
• Height (ROPS Down): 49.7 in. (126.2 cm)
• Weight (with mower and fuel): 995 lb (451 kg)

MULCHING SYSTEM

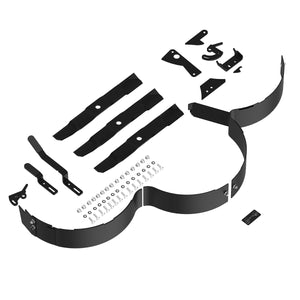

• Optional MulchControl™ attachment

WARRANTY

• 4-year / 750-hour bumper-to-bumper
