Description:

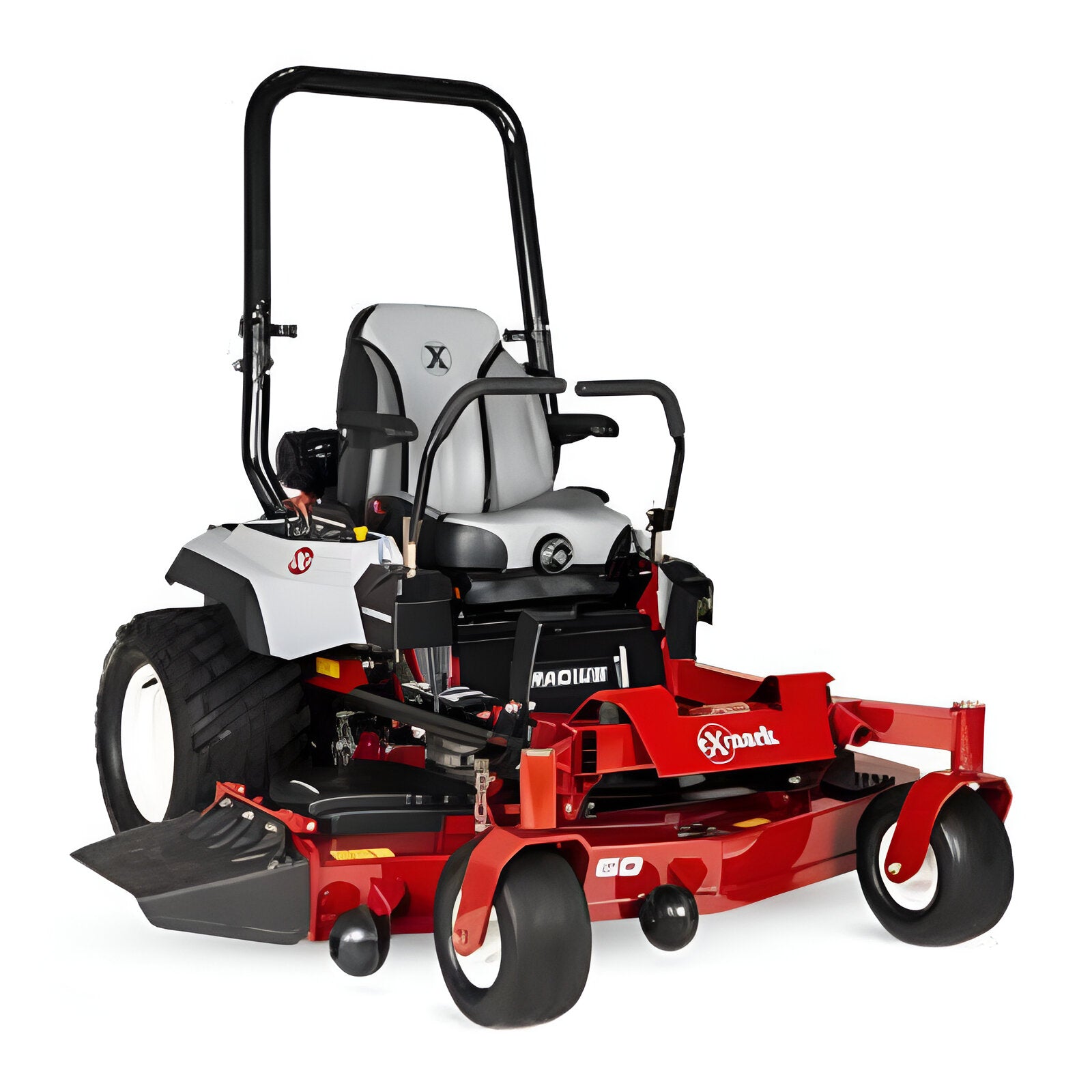

If you’re looking for the power and productivity of a premium commercial mower on a budget, you’re looking for a Radius X-Series. It combines features proven on our premier machines with the unbeatable value and efficiency you’ve come to expect from the Radius. Choose from 52- or 60-inch UltraCut Series 4 cutting decks, both with powerful Kawasaki commercial engines –– a FX801 on the 52-inch, and a FX921 on the 60-inch. The integrated Hydro-Gear transmissions work with aggressive 24-inch Kenda drive tires to provide unmatched traction and control, with forward speeds of up to 10 mph. Large semi-pneumatic caster tires, cast steel caster forks, and tapered caster pivot bearings provide years of maintenance-free performance. And with an adjustable full-suspension operator seat and isolated floor pan, the Radius X-Series makes “mow time” more enjoyable.

Features:

• UltraCut Deck Technology- Exmark’s exclusive UltraCut decks are featured on Radius models. Every UltraCut cutting deck features Exmark’s exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.
• Full-Suspension Operator Seat- Radius S- and X-Series models feature an adjustable full-suspension operator seat, with three inches of suspension and an EVC stretch foam base for superior all day mowing comfort.
• New Side Pods- The new side pod design places the most important controls right at the operator’s fingertips, for easy operation with a minimum of necessary movement.
• Heavy Duty Fabricated Frame- With a fully welded frame built from 2x3-inch frame tubes, the Radius design places major components including the engine, hydro drive system and fuel tank lower in the frame. The lower center of gravity and better mass centralization results in increased traction and stability, with improved handling.
• Service Made Easy- The floor pan and belt shields remove easily without tools, making it easier to access the belts and top of the cutting deck for maintenance. Plus, a standard welded jack receiver on the Radius frame enables easier service of the underside of the deck when combined with the optional jack.
• Upgraded Casters- Radius X-Series models feature upgraded caster assemblies featuring maintenance-free tapered caster pivot bearings, with cast steel caster forks and large, semi-pneumatic caster tires.

Specifications:

• Engine:
• Brand: Kawasaki
• Model: FX921V
• Displacement: 999cc
• Engine Series: V-Twin
• Engine Speed: 3820 rpm
• Fuel Type: Gas, Carbureted
• Fuel Capacity: 7-gallon (26.5-L)
• Fuel System: Carbureted
• Air Filter: Heavy-duty canister air filtration system
• Engine Spec: FX921V_S04-R
• Transmission:
• Type: Hydrostatic
• Speeds: Infinitely Variable
• Drive Description: Dual Hydro Gear ZT3400 with charge pumps, relief valves, independent filters
• Transmission Speeds: 0–10.0 mph (16.1 km/h) forward; 0–6.0 mph (9.7 km/h) reverse
• Drive System:
• Drive Type: Hydro-Drive
• Drive Wheel Release: Allows unit movement without engine running
• Steering:
• Type: Hydraulically dampened twin levers
• Adjustments: Adjustable both fore and aft, 2-position height adjustment
• Tires:
• Front Caster Tires: 13 x 6.5-6; smooth tread; pneumatic, sealed taper roller bearings
• Drive Tires: 24 x 12-12 K3012
• Brake System:
• Parking Brake: Lever-actuated pawl brake
• Frame:
• Type: Unibody, welded
• Material: Heavy-duty 2" x 3" rectangular tubular steel
• Blade Spindles:
• Maintenance: No maintenance; sealed and non-greasable spindles
• Spindle Diameter: 7.75" cutter housing with 25mm (0.98") spindle shaft and splined blade driver
• Electrical:
• Voltage: 12-volt
• Battery: 12-volt battery
• Alternator: 15-amp
• Fuel Indicator: Translucent Visual
• Standard Features:
• Hour Meter: Engine hour meter
• Cup Holder: Included
• Tow Hitch & Jack Receiver: Included
• Safety Features: Operator Presence Controls (OPC), drive system interlock, safety interlock system indicators
• Seat:
• Type: Deluxe suspension seat with high back
• Features: Adjustable spring suspension, molded foam flip-up armrests, integral safety switch
• Deck:
• Deck Type: Full-floating UltraCut Series 4
• Cutting Deck Width: 60"
• Deck Construction: 10-gauge high strength alloy, formed and continuously seam welded, 7-gauge side skirt
• Cutting Heights: 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (0.6 cm) increments
• Deck Lift: Foot-controlled for height adjustment and transport position
• Blade Tip Speed: Approximately 18,500 fpm
• Blades: 3 Blades, 20.5" Length
• PTO Engagement:
• Type: MagStop electromagnetic, 225-ft-lb clutch
• Dimensions:
• Width: 72.3 in (183.6 cm)
• Height: 70 in (178 cm)
• Length: 80.5 in (204.5 cm)
• Curb Weight: 1006 lbs
• ROPS:
• Type: 2-post foldable ROPS with seat belt and latch
