Description:

Features:

• 21.5-hp (16.0-kW)* iTorque™ Power System
• 42-in. Accel™ Deep Deck, compatible with optional MulchControl™ kit with one-touch technology
• Twin Touch™ forward and reverse foot pedals
• 4 year/300 hour bumper-to-bumper warranty

Specifications:

Engine

• Power: 21.5 hp (16.0 kW)
• Engine Manufacturer/Model: FR651V
• Displacement: 44.3 cu in. (726 cc)
• Type: Overhead valve, full-pressure lube, oil filter
• Cylinders: V-twin, cast-iron liners
• Governor: Mechanical
• Choke/Speed Control: Separate levers, automatic choke return
• Cooling Method: Air
• Air Cleaner: Dry, replaceable
• Oil Change: No-tools oil drain with replaceable filter

Fuel System

• Type: Gasoline
• Fuel Delivery: Pulse pump, carburetor
• Fuel Tank Capacity: 3.3 U.S. gal. (12.5 L)
• Fuel Tank Location: Rear
• Fuel Fill Opening: On left fender, 3 in. (7.6 cm)
• Fuel Gauge: Gauge on dash

Electrical System

• Battery: 12 V, 340 CCA
• Charging System: Flywheel alternator, regulated, 12 amp
• Engine Starter: Bendix
• Hour Meter: Yes
• Headlights: Two standard, incandescent, 27 W
• 12-V Outlet: Optional

Transaxle

• Type: K46 hydrostatic integrated with transaxle
• Control: Twin Touch™ pedals
• Forward Speed: 0-5.5 mph (0-8.9 km/h)
• Reverse Speed: 0-4 mph (0-6.4 km/h)
• Brakes: Internal wet disc
• Oil Cooler: Fins and fan on transaxle

Mower Deck

• Type: Side discharge, Accel Deep™ mower deck
• Cutting Width: 42 in. (107 cm)
• Mower Deck Material: 12 gauge (0.105 in. / 2.7 mm)
• Mower Wash Port: Yes
• Mower Drive System: Electric PTO clutch, in-line belt
• Mower Wheel Adjustment: Four-position (tool required)
• Mower Level Adjustment: Exact Adjust ports and onboard deck-leveling gauge

Lift System

• Type: Foot pedal with optional adjustable spring assist kit

Chassis

• Frame: Welded heavy-duty
• Front Axle: Cast iron, front wheel ball bearings
• Front Tires: 15x6-6
• Rear Tires: 20x10-8
• Storage: Under seat and covered toolbox
• Cup Holder: Yes

Steering

• Type: Manual, sector and pinion
• Steering Wheel: Large, 14 in. (35.6 cm)
• Turning Radius: 16 in. (40.6 cm)
• Uncut Circle Radius: 26 in. (66 cm)

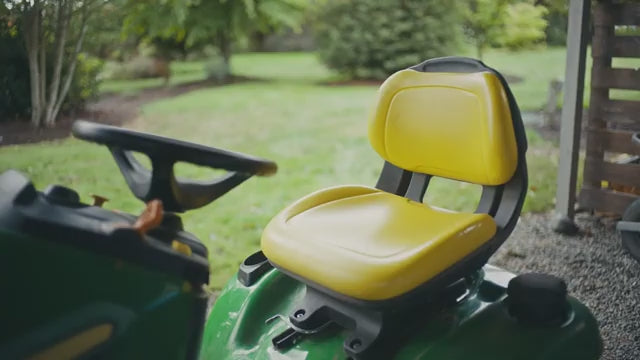

Seat

• Back Height: 15 in. (38 cm)
• Fore-Aft Adjustment: Ball bearing slide rail, 15-position, 6.6 in. (17 cm)
• Suspension: Tilt, two coil springs, three-position no-tools adjustment for operator weight

Dimensions & Weight

• Height: 46.1 in. (1171 mm)
• Overall Length: 71.5 in. (1817 mm)
• Wheelbase: 49.4 in. (1255 mm)
• Width with Mower: 50.5 in. (1283 mm)
• Width with Mower (Deflector Raised): 51.2 in. (1300 mm)
• Width without Mower: 38 in. (964 mm)
• Weight (Mower, No Fuel): 543 lb (246 kg)

Towing & Capacity

• Maximum Towing Capacity: 600 lb (272 kg)

Warranty

• U.S. Warranty: 4-year/300-hour bumper-to-bumper (Term limited to years or hours used, whichever comes first)

Optional Equipment

• Rear Bagger: 2-bag, 7 bu (247 L)

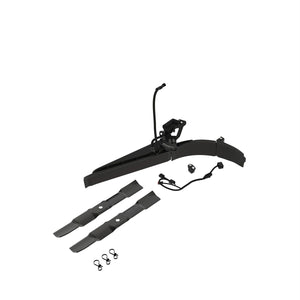

• Mulching System: Yes, MulchControl™
• Snow Blower: Two-stage, 44 in. (111.8 cm)
• Front Bumper: Styled bumper option
• Brush Guard: Yes
• Sun Canopy: Yes

Safety Features

• Reverse Implement Option (RIO): Yes
• Meets ANSI and OPEI Standards: Yes
