Description:

Features:

• 23-hp (17.2-kW)* iTorque™ Power System
• 48-in. Accel Deep™ mower deck, compatible with optional MulchControl™ kit with one-touch technology
• Twin Touch™ forward and reverse pedals
• 4 year/300 hour bumper-to-bumper warranty

Specifications:

• Engine Manufacturer/Model: FR691V
• Engine Power: 23 hp (17.2 kW)
• Displacement: 44.3 cu in. (726 cc)
• Type: Overhead valve, full-pressure lubrication, oil filter
• Cylinders: V-twin, cast-iron liners
• Governor: Mechanical
• Choke/Speed Control: Separate levers, automatic choke return
• Cooling Method: Air
• Air Cleaner: Dry, replaceable
• Oil Change: No-tools oil drain with replaceable filter
• Fuel System: Pulse pump, carburetor
• Fuel Tank Capacity: 3.3 U.S. gal. (12.5 L)
• Fuel Tank Location: Rear
• Fuel Gauge: Gauge on dash
• Fuel Fill Opening: On left fender, 3 in. (7.6 cm)
• Electrical System
• Battery: 12 V, 340 CCA
• Charging System: Flywheel alternator, regulated, 12 amp
• Engine Starter: Bendix
• Hour Meter: Yes
• Headlights: Two standard, incandescent, 27 W
• Taillights/Reflectors: No
• Backup Lights: No
• Rear Work Lights: No

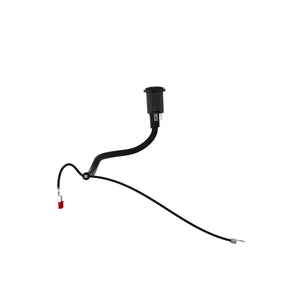

• 12-V Outlet: Optional
• Transmission & Drive
• Transaxle Type: K58 hydrostatic integrated with transaxle
• Transaxle Control: Twin Touch™ pedals
• Cruise Control: Yes, button on dash
• Oil Cooler: Fins and fan on transaxle
• Oil Filter: Internal, not replaceable
• Differential Lock: No
• Forward Speed: 0-6.2 mph (0-10 km/h)
• Reverse Speed: 0-3.5 mph (0-5.6 km/h)
• Brakes: Internal wet disc
• Mower Deck
• Lift System Type: Foot pedal with adjustable spring assist
• Mower Deck Type: Accel Deep™ mower deck, 48 in. (122 cm)
• Mower Deck Construction: Forged steel deck shell
• Mower Deck Material: 10 gauge (0.135 in. / 3.4 mm)
• Mower Wash Port: Yes
• Mower Drive System: Electric power take-off (PTO) clutch, in-line belt
• Mower Wheels: Four
• Mower Wheel Adjustment: Seven-position, spring-loaded pin
• Mower Level Adjustment: Exact Adjust ports and onboard deck-leveling gauge
• Mower Deck Type: Roll under tractor
• Mower Attachability: Meets ANSI & OPEI standards
• Backup Protection: Reverse Implement Option (RIO)
• Chassis & Frame
• Frame Type: Welded heavy-duty
• Primer/Paint: E-coat/powder
• Weight Bracket: Standard rear, optional front
• Receiver Hitch: No
• Front Axle: Cast iron front axle with front wheel ball bearings
• Spindle Bushings: No
• Floor Mats: Sure-grip rubber
• Storage: Yes, under seat and covered toolbox
• Service Interval Decal: Yes
• Fender Handles/Grips: No
• Cup Holder: Yes
• Equipment Mounting: Yes, heavy-duty
• Maximum Towing Capacity: 600 lb (272 kg)
• Steering & Turning Radius
• Steering Type: Manual, sector and pinion
• Four-Wheel Steer: Not available
• Steering Wheel: Large, 14 in. (35.6 cm)
• Tilt Steering Wheel: No
• Turning Radius: 16 in. (40.6 cm)
• Uncut Circle Radius: 21 in. (53.3 cm)
• Seat Specifications
• Seat Type: Cut-and-sewn high-back
• Seat Back Height: 18 in. (46 cm)
• Armrests: Optional
• Fore-Aft Adjustment: Ball bearing slide rail, 15-position, 6.6 in. (17 cm)
• Seat Suspension: Tilt, two coil springs, three-position no-tools adjustment for operator weight
• Cutting System
• Mower Cut Height: 13 positions, 1-4 in. (2.5-10.2 cm)
• Cut Height Increments: 0.25 in. (0.64 cm)
• Preset Cut Height: Yes
• Mower Deck Type: Side discharge
• Tires & Dimensions
• Front Tires: 15x6.5-8
• Rear Tires: 22x11-10
• Dimensions:
• Height: 49 in. (1244 mm)
• Overall Length: 72.3 in. (1836 mm)
• Wheelbase: 49.4 in. (1255 mm)
• Width with Mower: 62.6 in. (1590 mm)
• Width with Mower (Deflector Raised): 52.6 in. (1335 mm)
• Width without Mower: 39.4 in. (1000 mm)
• Weight (Mower, No Fuel): 651 lb (295 kg)
• Warranty
• Warranty: 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model.)
• Optional Equipment
• Mowers: 48A (standard)
• Rear Bagger: 7, 19 bu (247, 670 L)
• Powered Material Collection: Power Flow™ blower

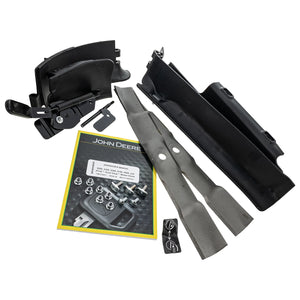

• Mulching System: Yes, MulchControl™
• Front Thatcher: 38, 46, 54 in. (96.5, 116.8, 137.2 cm)
• Front Blade: 44 in. (111.8 cm)
• Snow Blower: Two-stage, 44 in. (111.8 cm)
• Sprayer: Tow-behind, 15 U.S. gal. (56.8 L) or 25 U.S. gal. (94.6 L) or Mounted, 25 U.S. gal.
• Spreader: Tow-behind, 25 lb (57.7 kg), 175 lb (79.4 kg), or Mounted, 125 lb
• Front Bumper: Styled bumper option
• Brush Guard: Yes
• Weather Protection: Weather enclosure
• Sun Canopy: Yes
• Bucket Holder: Yes, double bucket
• Grass Striping: Lawn striping kit
• Tractor Shovel: 40 in. (101.6 cm)
• Tow-behind Tools: 16
