Description:

Features:

• 24 hp (17.9 kW)* iTorque™ Power System
• 54-in. (137 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit with one-touch technology
• Twin Touch™ forward and reverse foot pedals
• 4 year/500 hour bumper-to-bumper warranty

Specifications:

• Engine
• Engine Power: 24 hp (17.9 kW)
• Engine Manufacturer/Model: FR730V (V-twin, overhead valve, full-pressure lube, oil filter)
• Engine Displacement: 44.3 cu in. (726 cc)
• Fuel Type: Gasoline (Pulse pump and carburetor fuel delivery)
• Fuel Tank Capacity: 4.4 U.S. gal (16.7 L)
• Oil Change: No-tools oil drain with replaceable filter
• Cooling Method: Air-cooled
• Battery: 12 V, 340 CCA, Flywheel alternator (12 amp)
• Choke/Speed Control: Separate levers, automatic choke return
• Fuel Gauge: Gauge on the dashboard
• Transaxle and Drive System
• Transaxle Type: K72 hydrostatic integrated with transaxle
• Transaxle Control: Twin Touch™ pedals for forward/reverse control
• Cruise Control: Yes, button on the dash for easy speed maintenance
• Oil Cooler: Fins and fan on the transaxle
• Forward Speed: 0-7.2 mph (0-11.6 km/h)
• Reverse Speed: 0-5.2 mph (0-8.4 km/h)
• Brakes: Internal wet disc brakes for smooth, reliable stopping
• Chassis and Frame
• Frame: Welded heavy-duty
• Front Axle: Cast iron, front wheel ball bearings
• Spindle Bushings: Metal, replaceable for durability
• Front Tires: 15x6.5-8
• Rear Tires: 24x12-12 Turf tires for enhanced grip and minimal lawn damage
• Maximum Towing Capacity: 800 lb (363 kg)
• Weight Bracket: Standard rear, optional front (holds up to four Quik-Tatch weights, 42 lb each)
• Mower Deck
• Cutting Width: 54 in. (137 cm)
• Deck Material: 10-gauge steel (0.135 in / 3.4 mm)
• Deck Construction: Forged steel shell for long-lasting performance
• Mower Drive System: Electric power take-off (PTO) clutch, in-line belt
• Mower Height Adjustment: 13 positions, 1-4 in. (2.5-10.2 cm) with 0.25 in. (0.64 cm) increments
• Mower Wash Port: Yes, for easy deck cleaning
• Mower Wheels: Four, spring-loaded pin adjustment
• Mower Deck Attachability: Quick and easy with 90-degree rotating mower wheels for removal
• Mower Lift System: Foot pedal with adjustable spring assist
• Comfort and Convenience
• Seat: High-back seat with adjustable fore-aft position (15 positions, 6.6 in / 17 cm)
• Seat Suspension: Tilt with two coil springs, three-position no-tools adjustment for operator weight
• Cup Holder: Yes, for added comfort during operation
• Storage: Under-seat and covered toolbox
• Hour Meter: Yes, tracks operating hours
• Headlights: Two standard incandescent, 27 W
• Electrical System: 12 V system, includes a 12-V outlet for accessories
• Dimensions
• Overall Length: 74.6 in. (1894 mm)
• Width with Mower: 68.4 in. (1737 mm)
• Width without Mower: 40.7 in. (1034 mm)
• Height: 46.1 in. (1171 mm)
• Wheelbase: 51.2 in. (1300 mm)
• Uncut Circle Radius: 20 in. (51 cm)
• Optional Attachments & Equipment
• Mowers: 54A (standard)

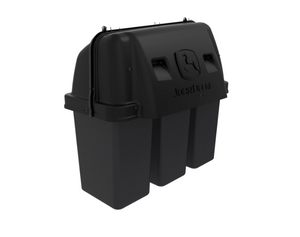

• Rear Bagger: 7, 14, 19 bu (247, 493, 670 L)
• Mulching System: Yes, with MulchControl™

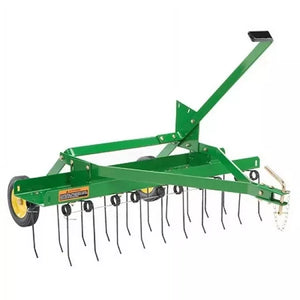

• Front Thatcher: Available in 38, 46, 54 in. (96.5, 116.8, 137.2 cm)
• Snow Blower: Two-stage, 44 in. (111.8 cm)
• Sprayer: Tow-behind, 15, 25, 45 U.S. gal. (56.8, 94.6, 170.3 L)
• Spreader: Tow-behind, 125, 175 lb (57.7, 79.4 kg)

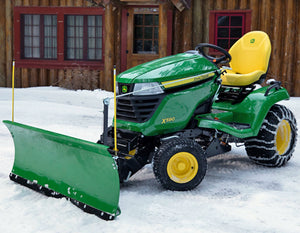

• Front Blade: 48 in. (121.9 cm)
• Weather Protection: Sun canopy and weather enclosure
• Grass Striping Kit: Yes, for a professional striped lawn finish
• Warranty
• Standard Warranty: 4 years or 300 hours bumper-to-bumper
• Battery Warranty: 5 years or 200 hours (whichever comes first)
• Key Features and Benefits
• Powerful Engine: 24 hp (17.9 kW) engine offers smooth performance for both residential and light commercial tasks.
• Heavy-Duty Construction: Welded heavy-duty frame and durable steel mower deck ensure longevity and reliability.
• Versatile Attachments: The tractor is compatible with a range of attachments including mulching systems, snow blowers, and bagging systems.
• Enhanced Comfort: High-back seat with adjustable suspension and ergonomic controls make long hours of use comfortable.
• Low Maintenance: Features like no-tools oil change and easy-to-adjust mower deck make maintenance quick and convenient.
• Improved Maneuverability: Tight turning radius (16 in / 40.6 cm) and smooth power steering make it easy to navigate around obstacles and tight spaces.
