Description:

• 24 hp (17.9 kW)* iTorque™ Power System
• 54-in. (137 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit with one-touch technology
• 21-in. cut and sewn Seat
• 4 year/500 hour bumper-to-bumper warranty

Specifications:

• Power: 24 hp (17.9 kW)
• Engine Manufacturer/Model: FR730V
• Type: Overhead valve, full-pressure lube, oil filter
• Cylinders: V-twin, cast-iron liners
• Governor: Mechanical
• Choke/Speed Control: Separate levers, automatic choke return
• Cooling Method: Air
• Air Cleaner: Dry, replaceable
• Fuel Type: Gasoline
• Fuel Delivery: Pulse pump and carburetor
• Fuel Gauge: Gauge on dash
• Fuel Tank Location: Rear
• Fuel Fill Opening: On left fender, 3 in. (7.6 cm)
• Fuel Tank Capacity: 4.4 U.S. gal. (16.7 L)
• Oil Change: No-tools oil drain with replaceable filter
• Oil Filter: Yes, replaceable
• Battery: 12 V, 340 CCA
• Charging System: Flywheel alternator, regulated, 12 amp
• Engine Starter: Bendix
• Hour Meter: Yes

Transmission & Drive

• Transaxle Type: K72 hydrostatic integrated with transaxle
• Transaxle Control: Twin Touch™ pedals
• Forward Speed: 0-7.2 mph (0-11.6 km/h)
• Reverse Speed: 0-5.2 mph (0-8.4 km/h)
• Oil Cooler: Fins and fan on transaxle
• Brakes: Internal wet disc
• Differential Lock: Standard
• Cruise Control: Yes, button on dash

Dimensions

• Mower Cutting Width: Accel Deep™ mower deck, 54 in. (137 cm)
• Width: 68.4 in. (1737 mm) with mower
• Width (Deflector Raised): 58.3 in. (1481 mm)
• Width without Mower: 40.7 in. (1034 mm)
• Height: 52.7 in. (1338 mm)
• Length: 77.4 in. (1966 mm)
• Wheelbase: 51.2 in. (1300 mm)
• Weight (No Fuel): 777 lb (352 kg)

Mower Deck

• Mower Type: Side discharge
• Construction: Forged steel deck shell
• Material: 10 gauge (0.135 in. / 3.4 mm)
• Mower Drive System: Electric PTO clutch, in-line belt
• Mower Wheels: Four, with seven-position, spring-loaded pin adjustment
• Mower Wash Port: Yes
• Mower Wheel Adjustment: Seven-position
• Mower Level Adjustment: Exact Adjust ports and deck-leveling gauge

Hydraulic & Lift System

• Lift System Type: Hydraulic
• Lift System Type (Details): Side discharge
• Preset Cut Height: Yes
• Mower Cut Height: 13 positions, 1-4 in. (2.5-10.2 cm)
• Cut Height Increments: 0.25 in. (0.64 cm)

Electrical System

• Headlights: Two standard, incandescent, 27 W
• Taillights/Reflectors: Reflectors
• Backup Lights: No
• Rear Work Lights: No
• 12-V Outlet: Yes
• Charging System: 12-amp flywheel alternator

Steering & Chassis

• Steering Type: Power, hydraulic
• Steering Wheel: 14 in. (35.6 cm)
• Turning Radius: 22 in. (55.9 cm)
• Uncut Circle Radius: 24 in. (61 cm)
• Frame: Welded heavy-duty
• Front Axle: Cast iron, front wheel ball bearings
• Weight Bracket: Holds up to four Quik-Tatch weights (42 lb / 19 kg each)
• Storage: Covered toolbox
• Weight Bracket: Standard front and rear
• Maximum Towing Capacity: 800 lb (363 kg)

Safety & Warranty

• Safety Features: Reverse Implement Option (RIO), safety video included
• Warranty: 4 year/500 hour bumper-to-bumper (limited by years or hours used)

Optional Equipment & Accessories

• Mowers: 54XA (standard)
• Mulching System: MulchControl™

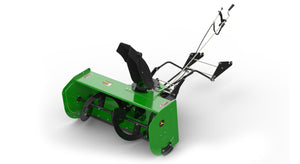

• Snow Blower: Two-stage, 47 in. (119.4 cm)
• Rear Bagger: 7, 14, 19 bu (247, 493, 670 L)
• Sprayers: Tow-behind, 15, 25, 45 U.S. gal. (56.8, 94.6, 170.3 L)
• Weather Protection: Weather enclosure, sun canopy
• Tractor Shovel: 40 in. (101.6 cm)
